Imex i66R Rotating Laser - New Series - LRX6 - Kit - 012-I66RX6-KIT
The class leader in economical rotating laser levels, the IMEX i66R incorporates the robust casing and technology of its big brothers in an efficient simple-to-use package. Featuring a huge 400m dia range, rubber sheath protection and heavy-duty lighthouse cover for superior shockproof and weatherproofing the i66R is the leader in value for everyday laser levelling. Robust construction tough horizontal laser level.
Features:
Self-levelling (electronic) 400m range
9Ah lithium-ion battery – approx 40 hours run time
USB quick charge port
Out of level warning light
LRX6 Digital Detector in mm reading German mode
60mm Detector reading fine, medium, coarse setting
30 second set-up time
Place on a tripod, press one button and beam begins
Fully enclosed laser housing for extra dust and splash proofing
Specifications:
I66R 400m Range Rotating Laser Level
Self Levelling Range - +/-5°
Working Distance - 400m Diameter
Accuracy - 2.0mm @ 30m
Rotation Speeds - 600rpm
Waterproof/Shockproof - IP66
Light Source - Red laser diode, 635nm Class II
Power - 9 Ah 3.7v lithium-ion
Detector - LRX6 Double Sided
Working time – continuous use - 40 hours approx
Charging Time - 4 hours in unit or removed from unit
USBC Charging - Including 12v car charger
High Wind Sensitivity Re-set - No
Remote Control - No
Weight – Unit Only 2.48kg
Detector – Pick Up 60mm +30mm to – 30mm
Detector Reading Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm
Detector Power 1-AA > 50 hrs run
LRX6 60mm Digital Receiver Red/Green Rotary
Detection Window - 60mm +30 to -30
Range - 300m Radius
Resolution Fine – 1.0mm, Medium – 2.0mm, Course – 5.0mm
Magnets - 2 x Topface
Waterproof, Shockproof Rating -IP67

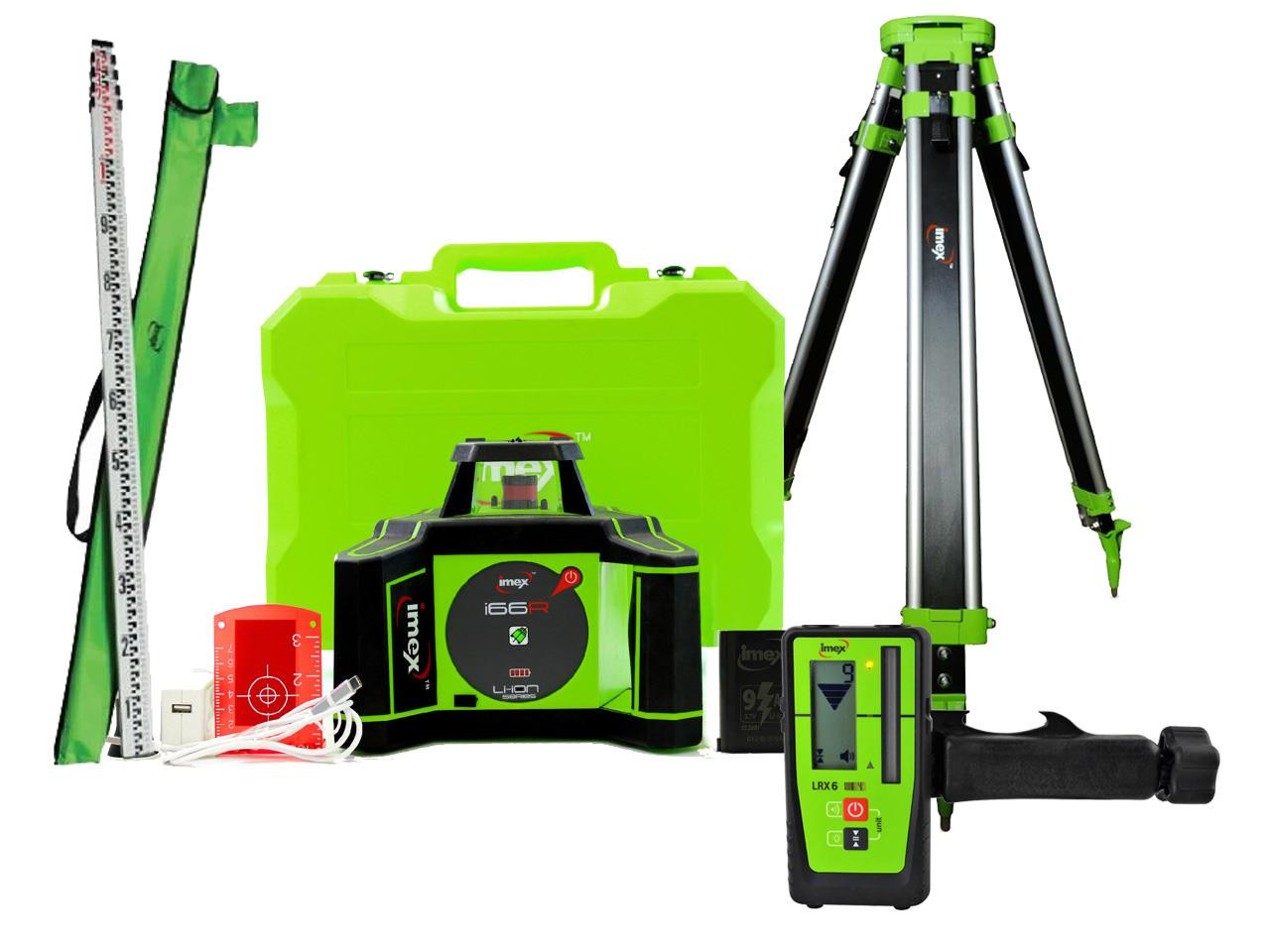

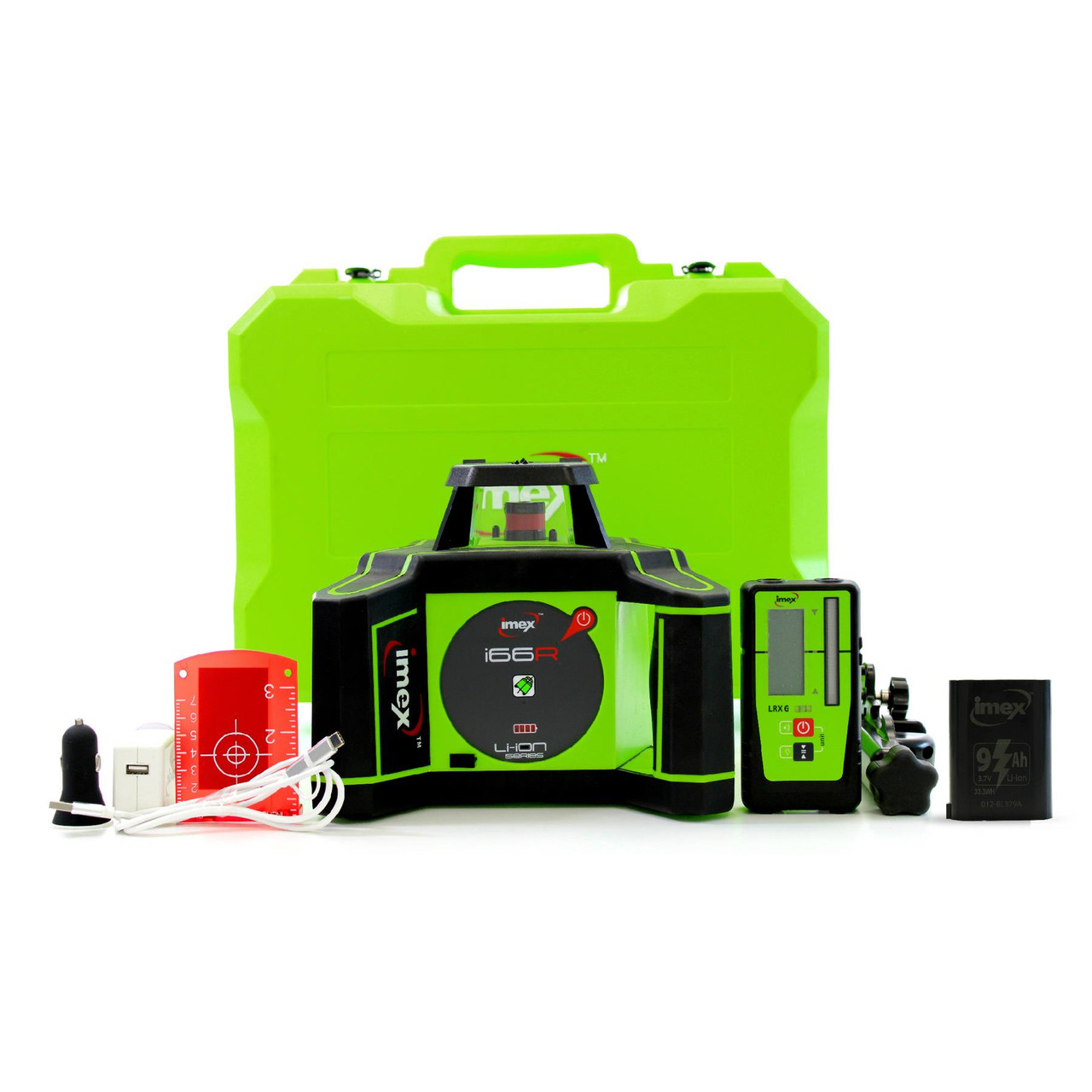

Comes With:
1 x I66R 400m Range Rotating Laser Level
1 x LRX6 60mm Digital Receiver Red/Green Rotary Digital Detector
1 x IMEXLS5 5m Metric-E Levelling Staff
1 x SJA30 Flat Top Aluminium Tripod
2 x 9Ah Batteries
1 x Tripod
1 x Levelling Staff
