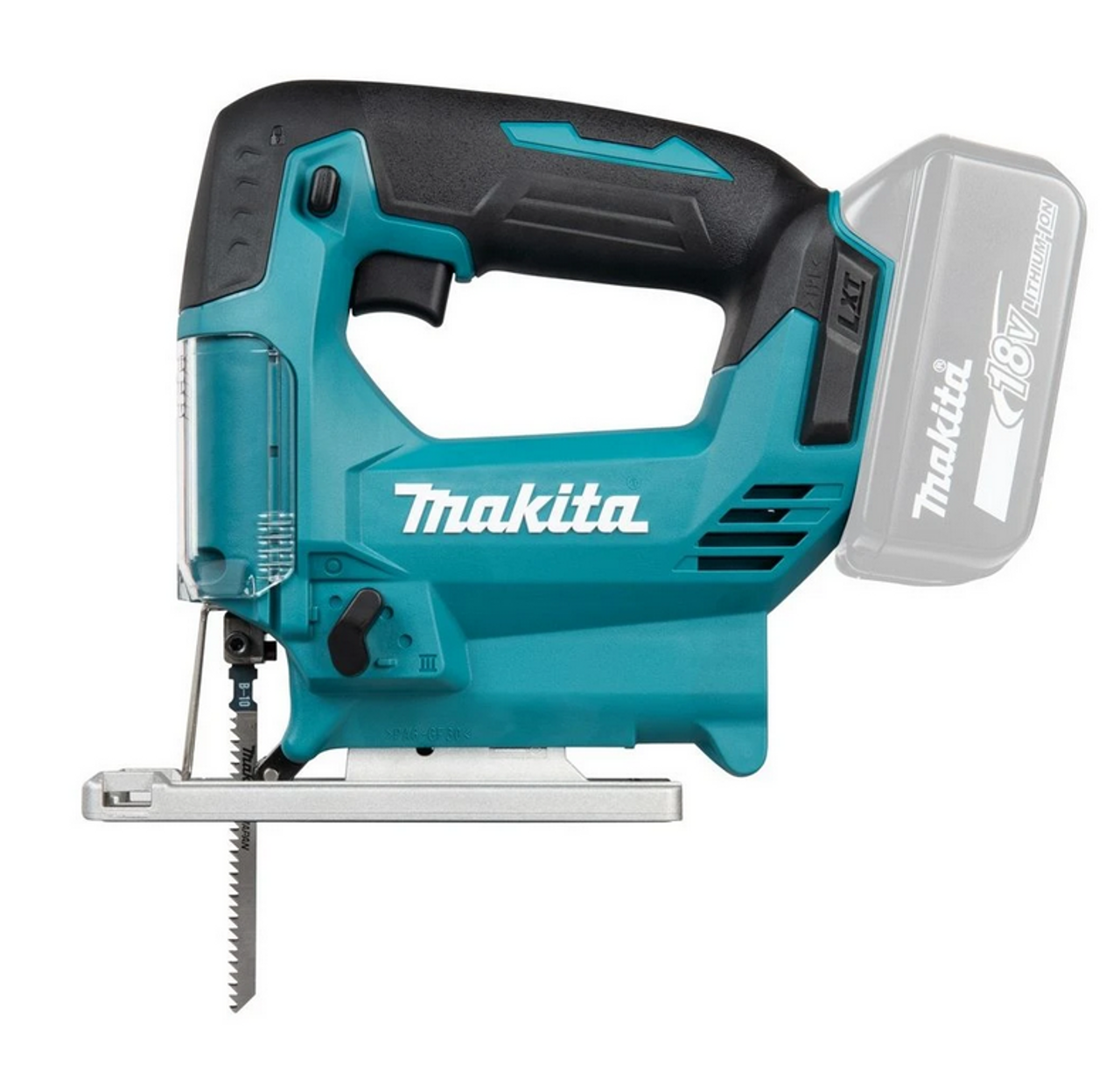

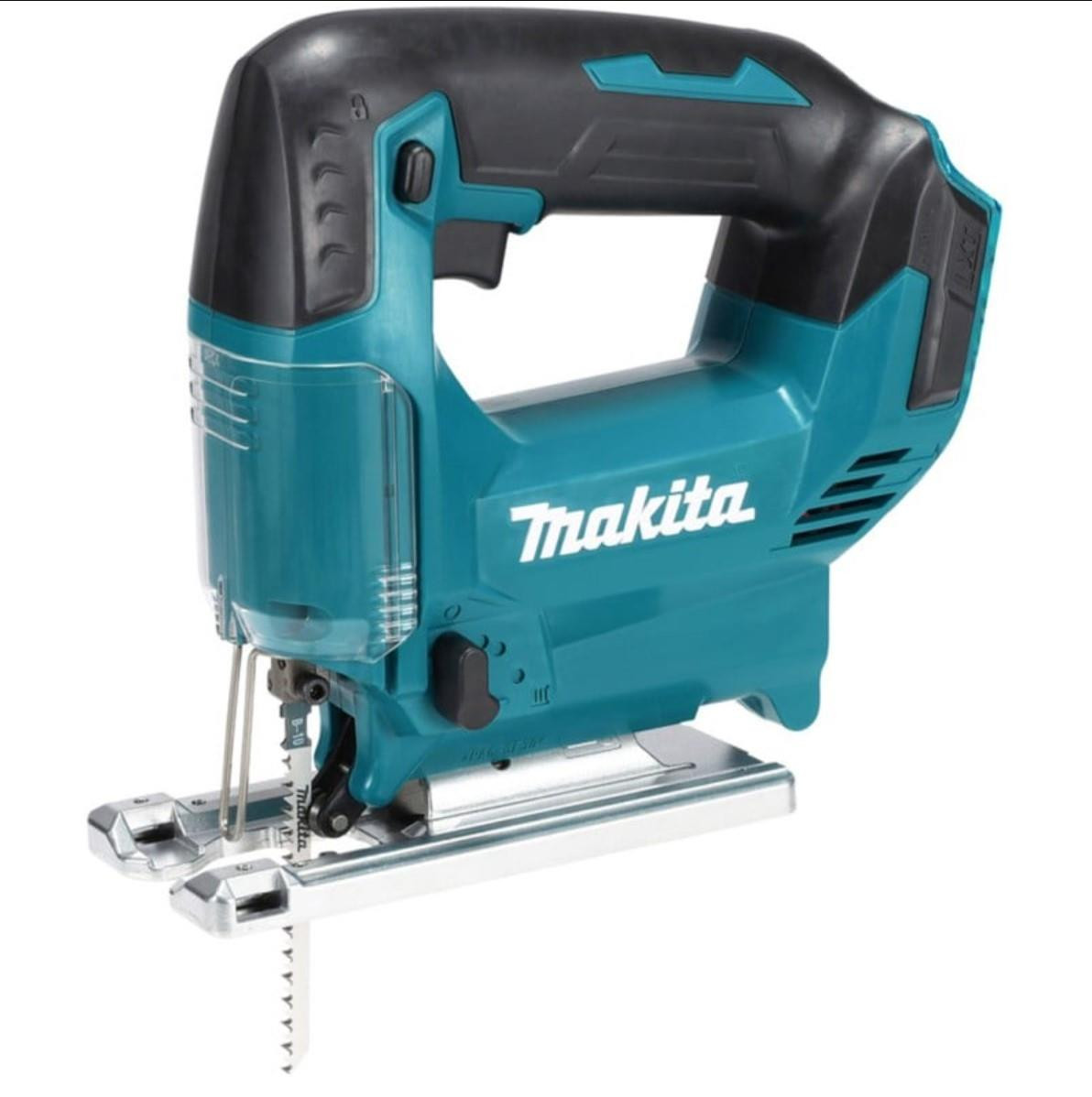

Makita DJV186Z 18V LXT Cordless Jigsaw – 65mm (Body Only)

Makita DJV186Z 18V LXT Cordless Jigsaw – 65mm Cutting Capacity (Body Only)

The Makita DJV186Z 18V LXT Jigsaw is a powerful and highly precise cutting tool designed for clean, accurate straight and curved cuts in wood, metal and aluminium. Built for professional performance, it delivers up to 2,900 strokes per minute, offering fast cutting speeds and excellent control across a wide variety of materials.

Powered by Makita’s industry-leading 18V LXT battery platform, this cordless jigsaw provides outstanding mobility and flexibility on site or in the workshop. A variable speed trigger combined with a top-mounted speed dial enables smooth, precise control, while the T-shank tool-less blade change system ensures quick and easy blade swaps.

With three orbital action settings, straight-cut mode, and a robust aluminium base adjustable from 0°–45° in both directions, the DJV186Z delivers impressive cutting efficiency and high-quality finishing. An electric brake, dust-blow function and vacuum extraction compatibility support safer, cleaner working conditions.

Key Features

• High-Performance 18V LXT Power
  Delivers up to 2,900 spm for fast, efficient cutting in wood, metal and aluminium.

• Tool-Free T-Shank Blade Changes
  Quick and easy blade replacement without additional tools.

• 3-Stage Orbital Action + Straight Cut Mode
  Adjust the cutting style from aggressive removal to fine, clean finishing.

• Electric Brake & Trigger Lock
  Stops the blade instantly for improved safety; prevents accidental startup.

• Dust-Blow Function + Extractor Compatibility
  Keeps the cutting line visible and the workspace cleaner.

• Adjustable Aluminium Base (0°–45°)
  Allows precise bevel cuts in both left and right directions.

• Ergonomic Soft-Grip Handle
  Provides comfort, control and reduced fatigue during extended use.

• Compact & Lightweight Design
  Easy to manoeuvre, ideal for tight areas and detailed work.

• BODY Only Version
  Supplied without battery or charger—fully compatible with all Makita 18V LXT batteries.

Technical Specifications

• Power Source: 18V LXT Li-Ion battery

• Stroke Length: 18 mm

• Max Cutting Depth (Wood): 65 mm

• Max Cutting Depth (Metal): 6 mm

• Max Cutting Depth (Aluminium): 10 mm

• No-Load Speed: 0 – 2,900 spm

• Bevel Capacity: 0° – 45° (left & right)

• Orbital Settings: 3

• Dust Blower: Yes

• Dust Extraction Port: Yes (vacuum compatible)

• Handle Type: Top-handle with elastomer grip

• Motor Type: Brushed

• Noise Level: 93 dB(A) (acoustic power)

• Weight: 1.6 kg

• Dimensions (L × W × H): 257 × 81 × 196 mm

• Manufacturer Code: DJV186Z

• EAN: 0197050011855

Included in the Box

• Makita DJV186Z 18V LXT Cordless Jigsaw (Body Only)

• 3 mm Hex Key (783201-2)

• Jigsaw Blade 105 × 1.25 mm (A-85628)
