Mexco UHXCEL18022 180MM 22.23MM Bore Ultra Hard Materials XCEL Grade Diamond Blade

EAN: 5060093867220 | SKU: UHXCEL18022

Mexco UHXCEL18022 180MM 22.23MM Bore Ultra Hard Materials XCEL Grade Diamond Blade

Ex. VAT

£31.22 Ex. VAT

£37.46

Inc. VAT

Usually dispatches in 2-3 days

Availability:: Usually dispatches in 2-3 days
Size:: 101-200 mm

Description

Description

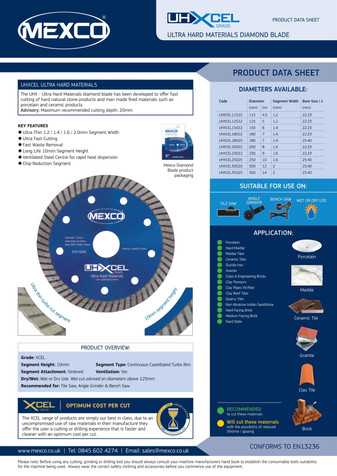

Mexco UHXCEL18022 180MM 22.23MM Bore Ultra Hard Materials XCEL Grade Diamond Blade

Description:

The UHX - Ultra Hard Materials diamond blade has been developed to offer fast cutting of hard natural stone products and man made fired materials such as porcelain and ceramic products. The performance of this blade can be attributed to its ultra thin 1.2 / 1.4 / 1.6 / 2.0mm castellated design turbo segment enabling not only fantastic cutting performance but also a super clean cut with a huge reduction in chipping.

Specifications:

Maximum recommended cutting depth: 20mm

Diameter: 180mm (7 inch)

Bore Size: 22.23mm

Segment Height: 8mm

Segment Width: 1.4mm

Segment Type: Continuous

Segment Attachment: Sintered

Usage: Can be used dry. Wet cut advised on sizes above 125mm

Ventilation: No

Applications:

Porcelain, Hard Marble, Marble Tiles, Ceramic Tiles, Ductile Iron, Granite, Class A Engineering Brick, Clay Paviours, Clay Pipes Vitrified, Clay Roof Tiles, Quarry Tiles, Non Abrasive Indian Sandstone, Hard Facing Brick, Medium Facing Brick and Hard Slate
