EAN: 5027654091500 | SKU: TRELOCK/JIG/C

Trend Professional Lock Jig LOCK/JIG/C

Ex. VAT
£104.12
Ex. VAT
£124.95
Inc. VAT

in stock
Free delivery

Buy Now Pay Later with PayPal

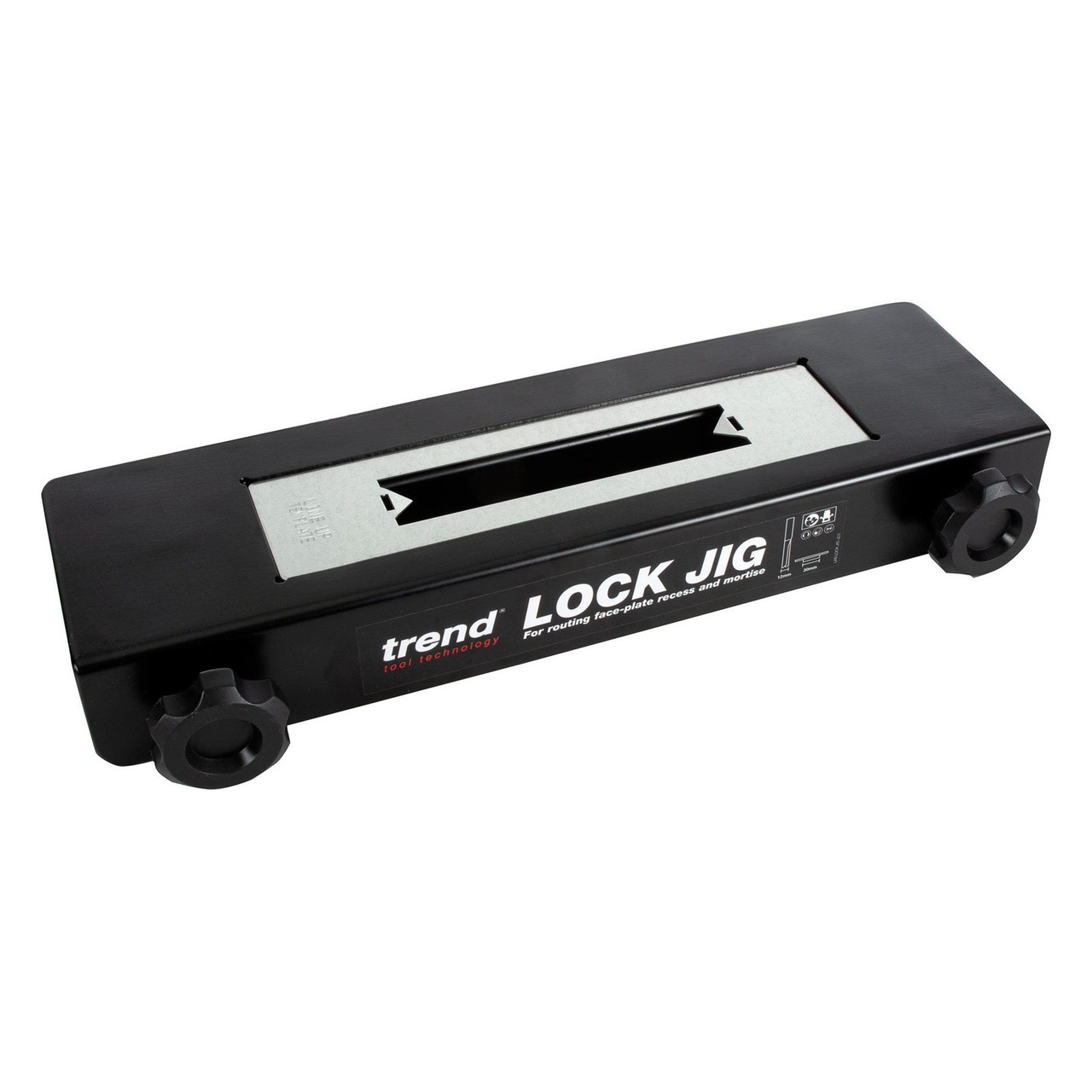

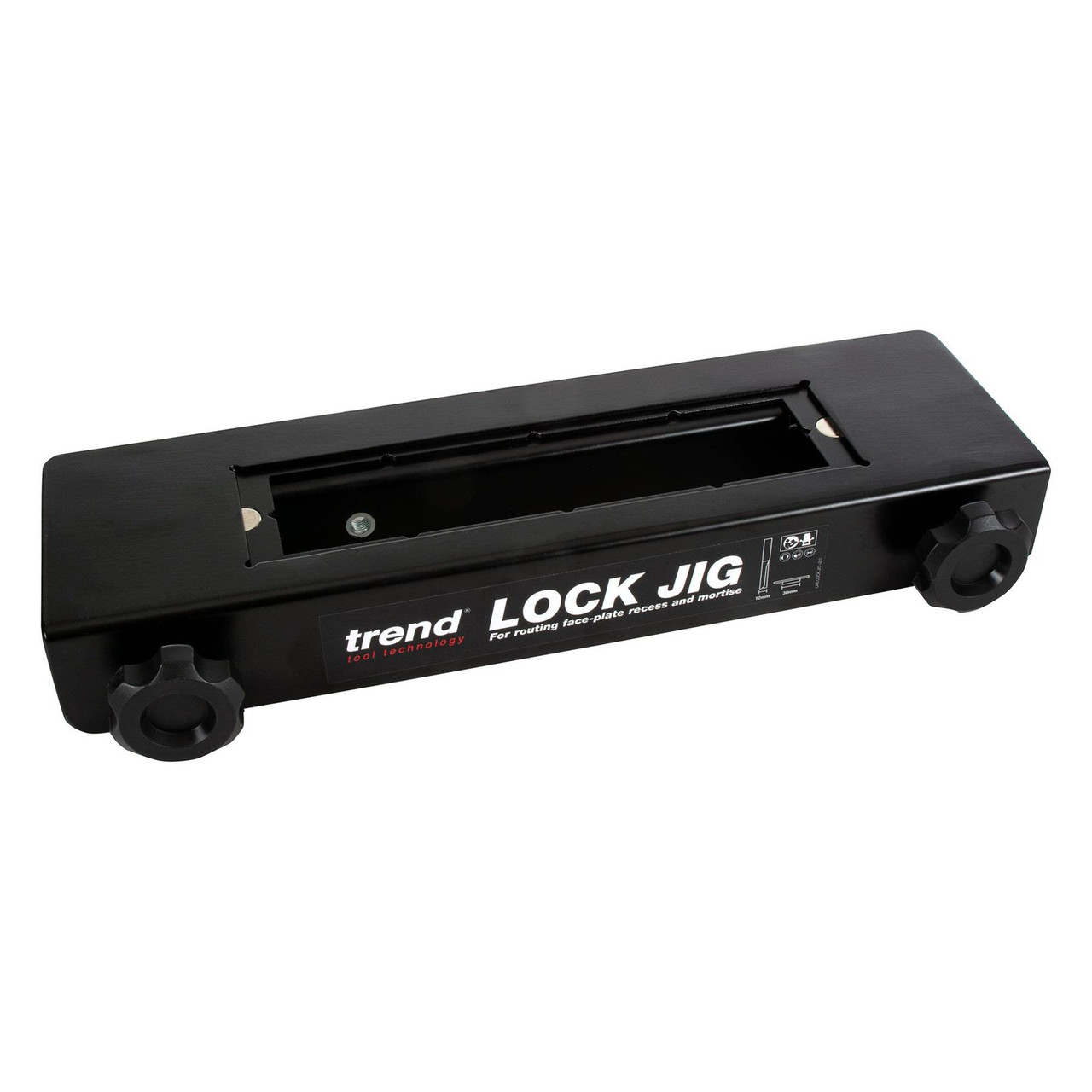

Trend LOCK/JIG/C - Professional Lock Jig

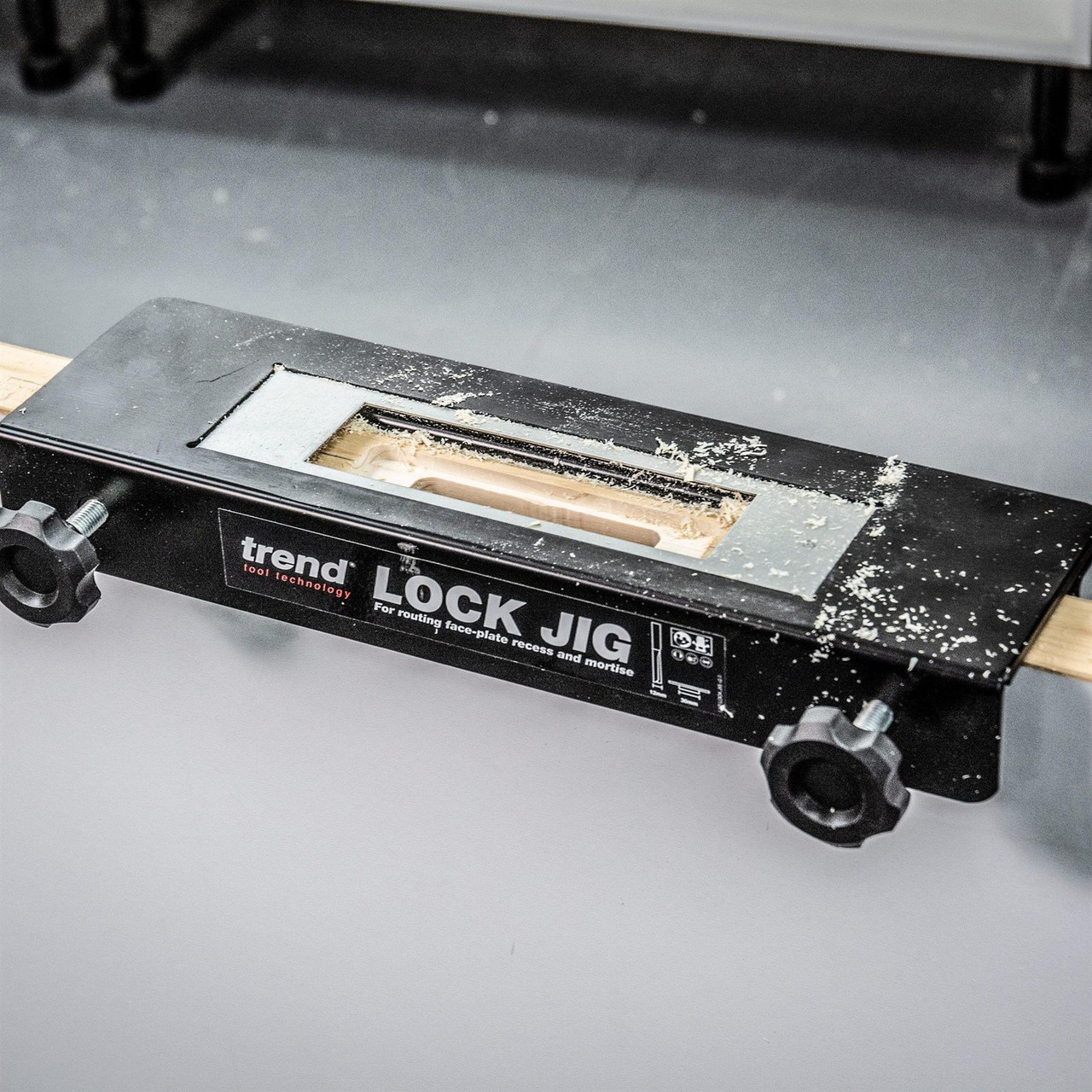

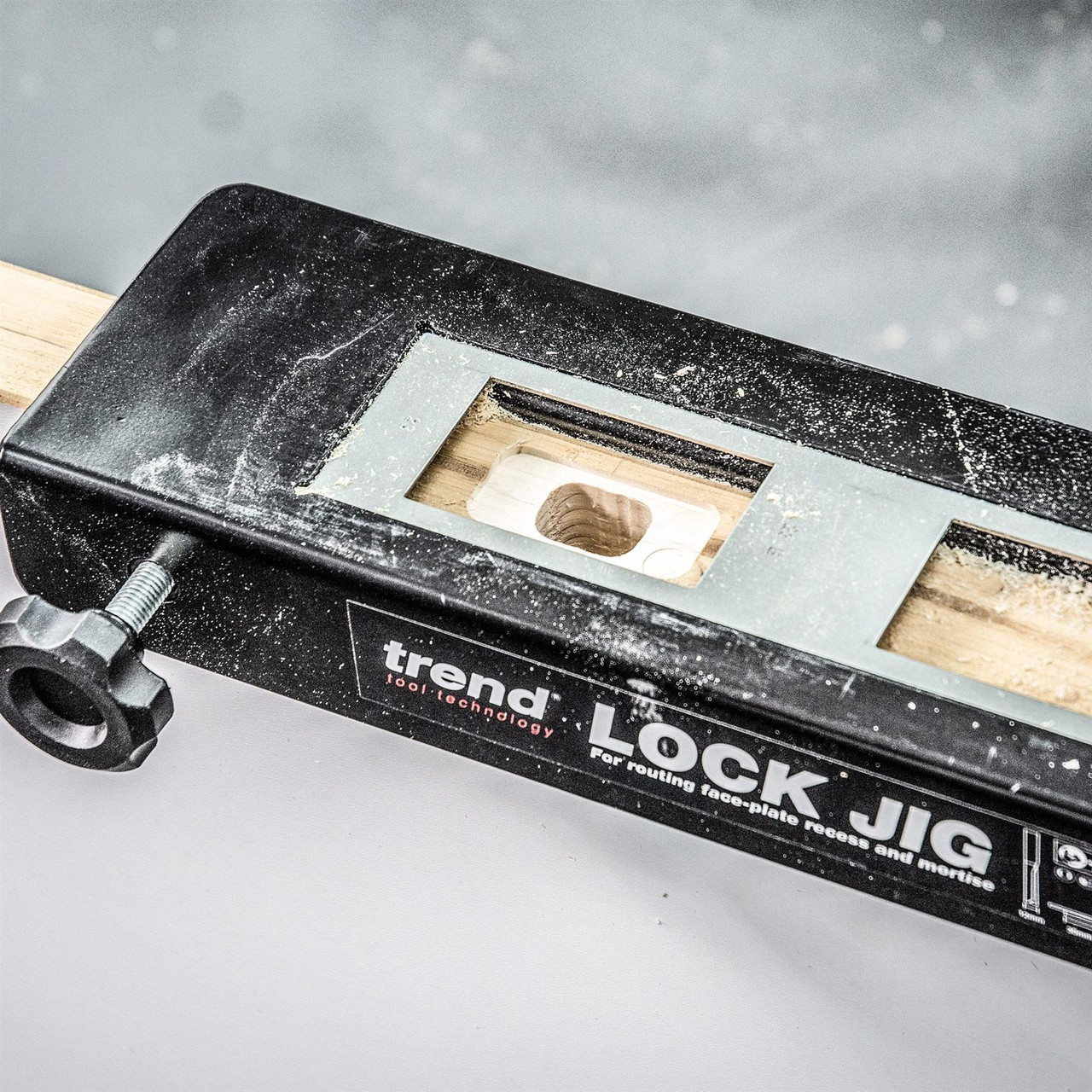

A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands.

  • Steel Construction for maximum strength, durability and accuracy.

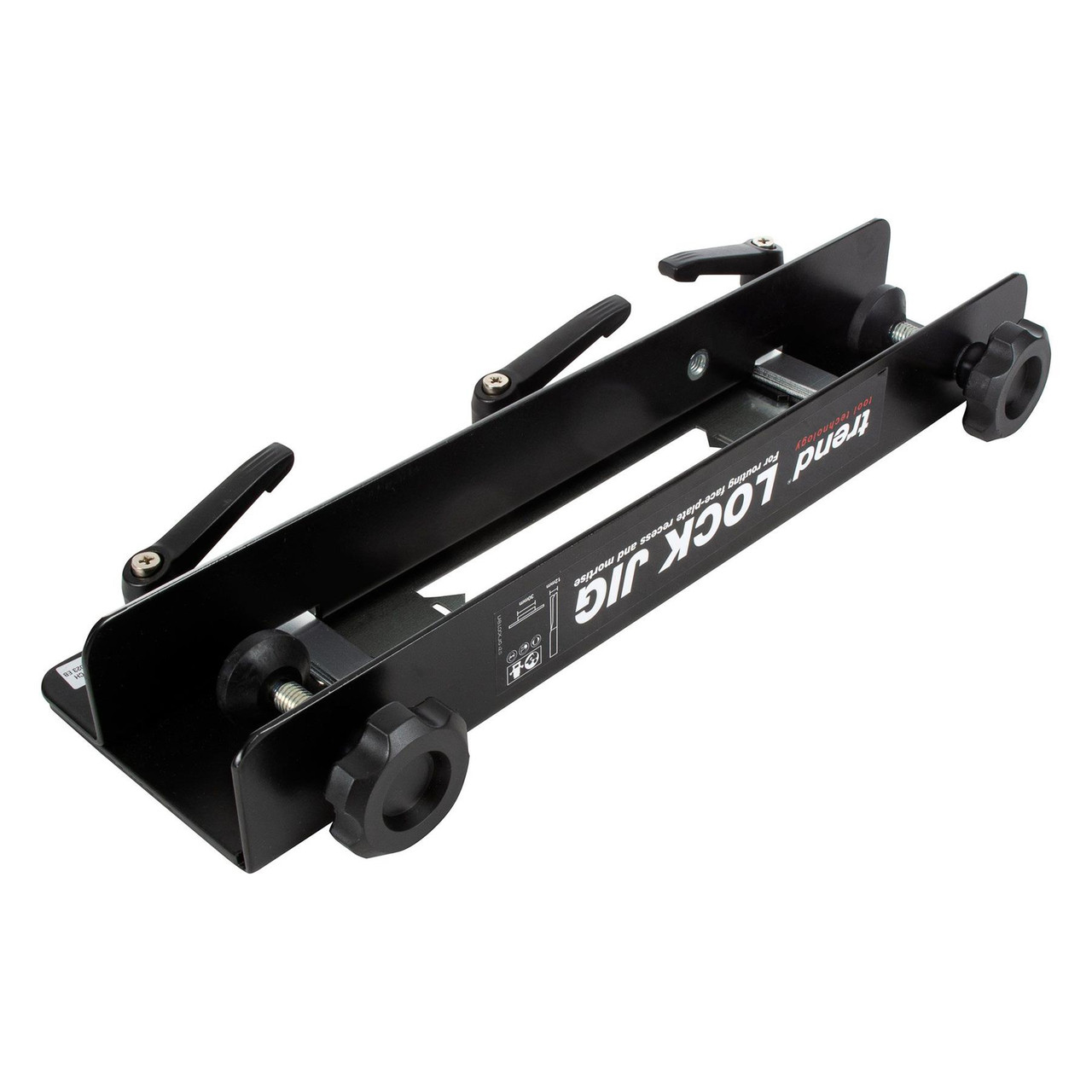

  • Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.
  • Quick-Release Clamps with non-marring pads ensure the jig is held securely.

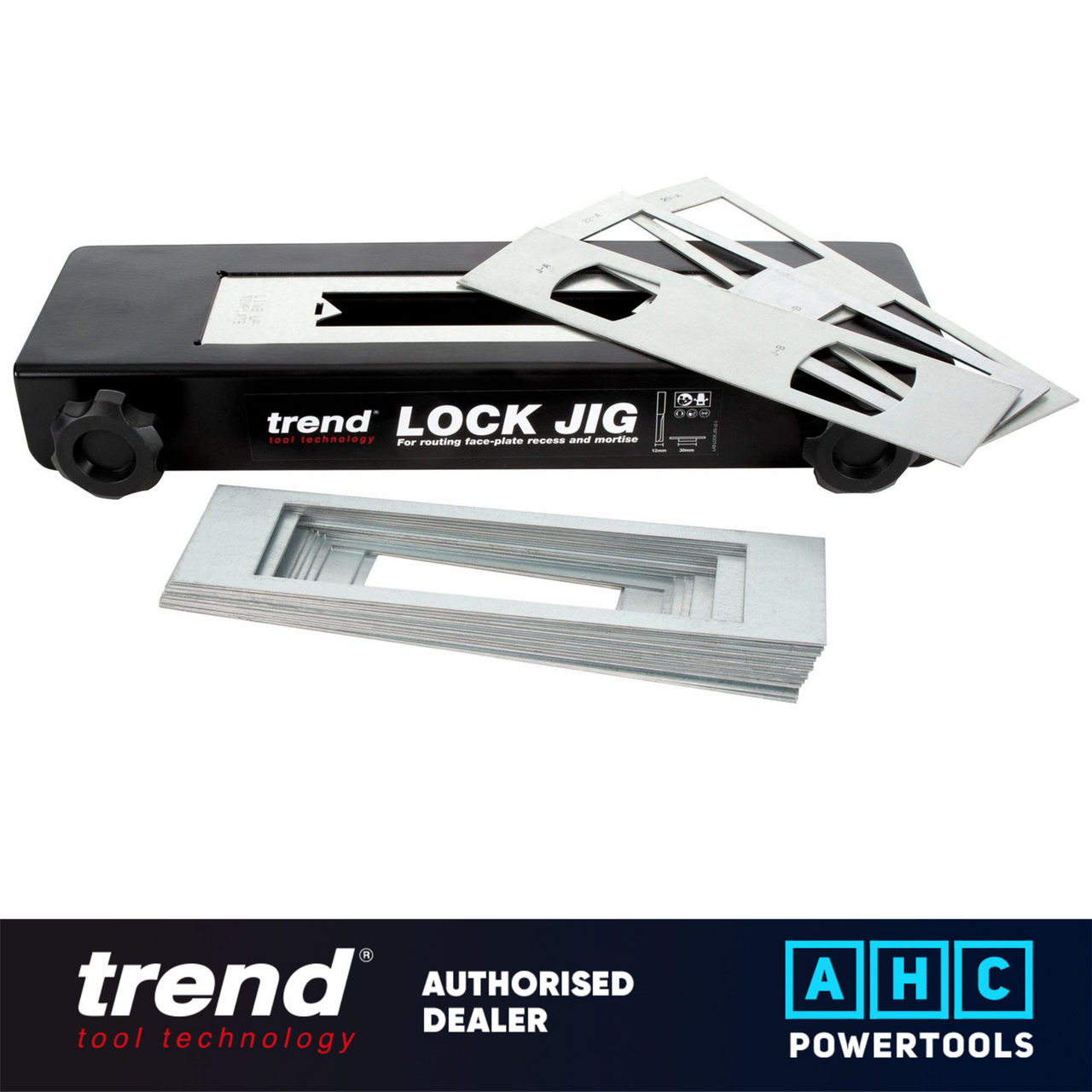

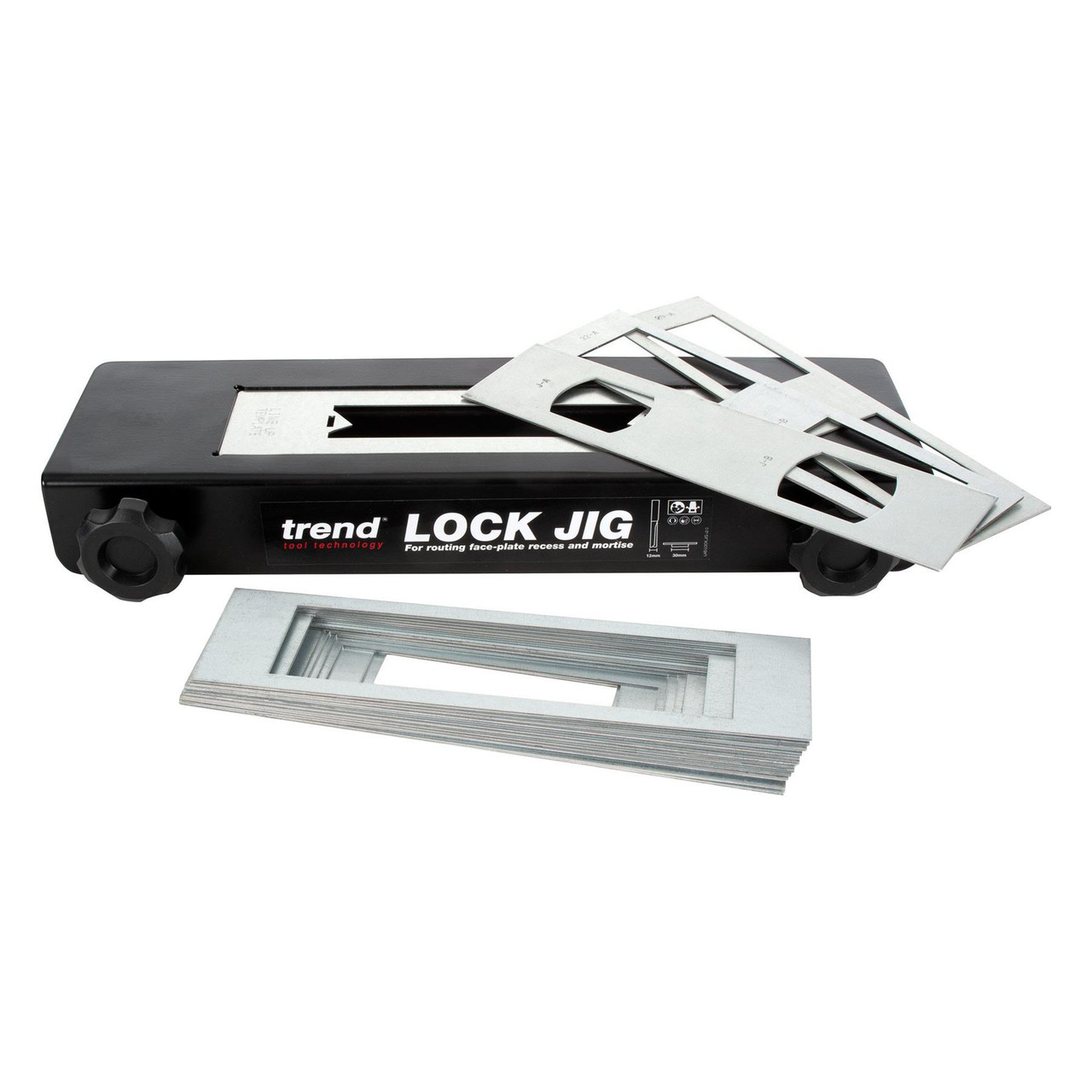

  • 20 Interchangeable Templates to suit all common lock case and face plate sizes.

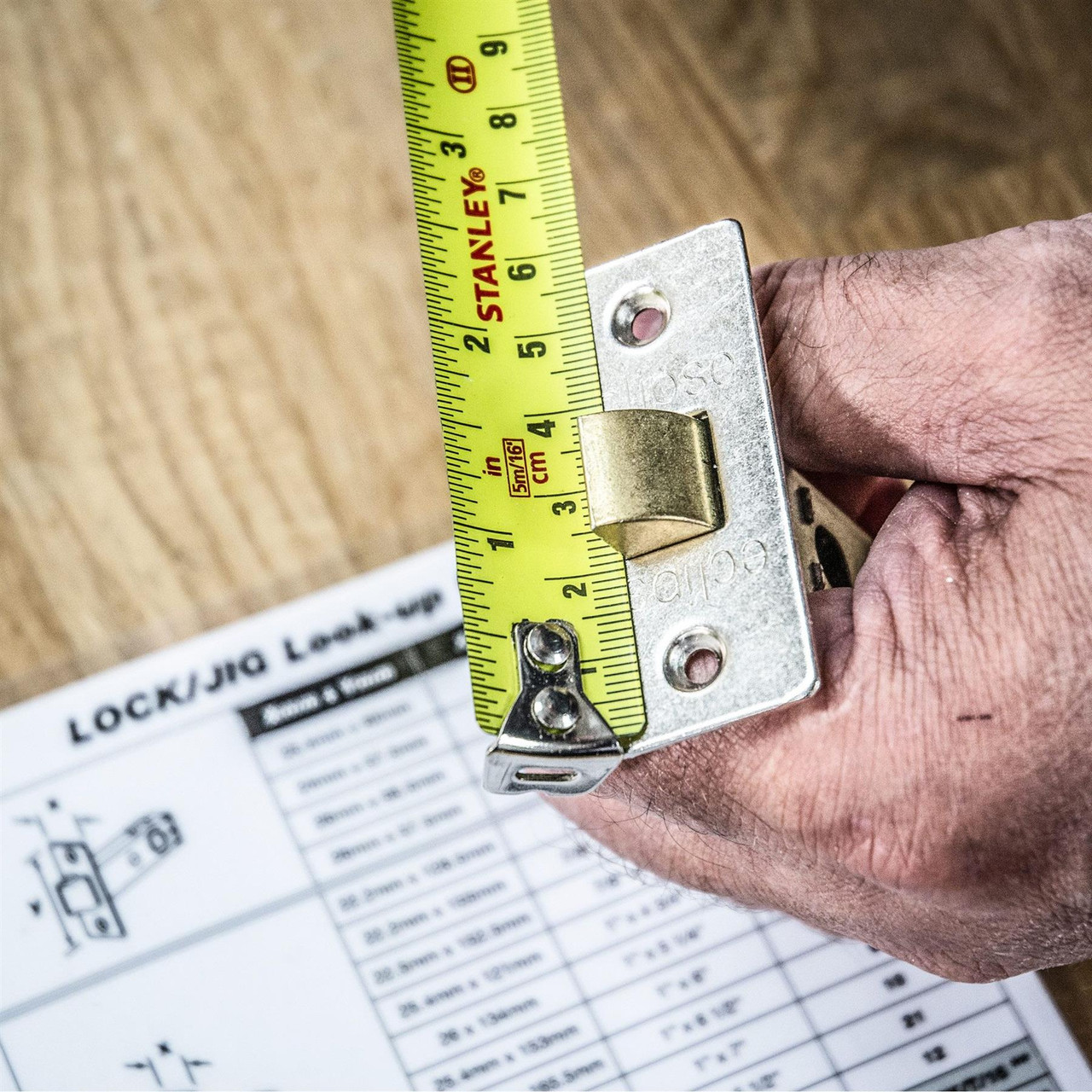

  • Easy Reference Chart ensures that correct templates are found quickly.

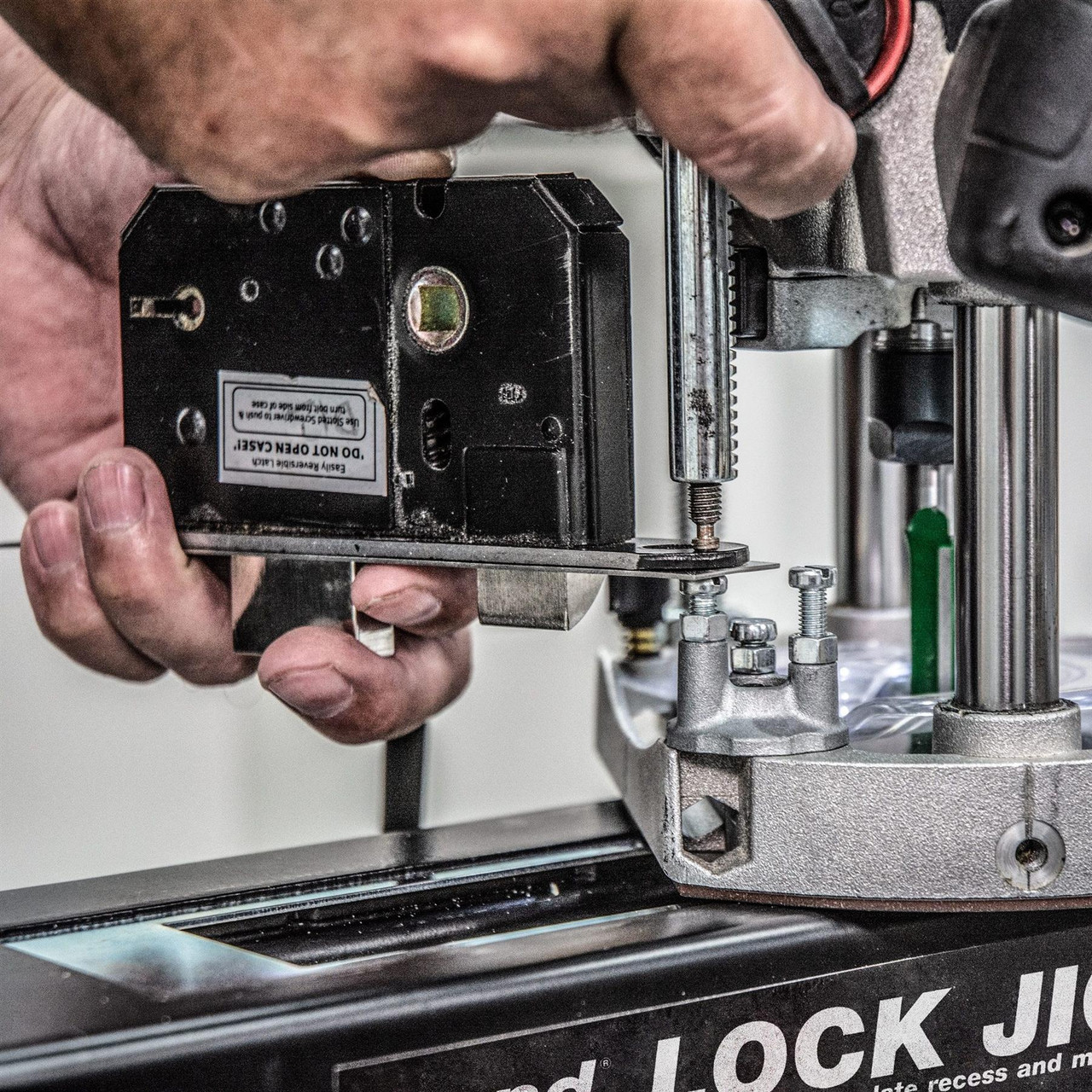

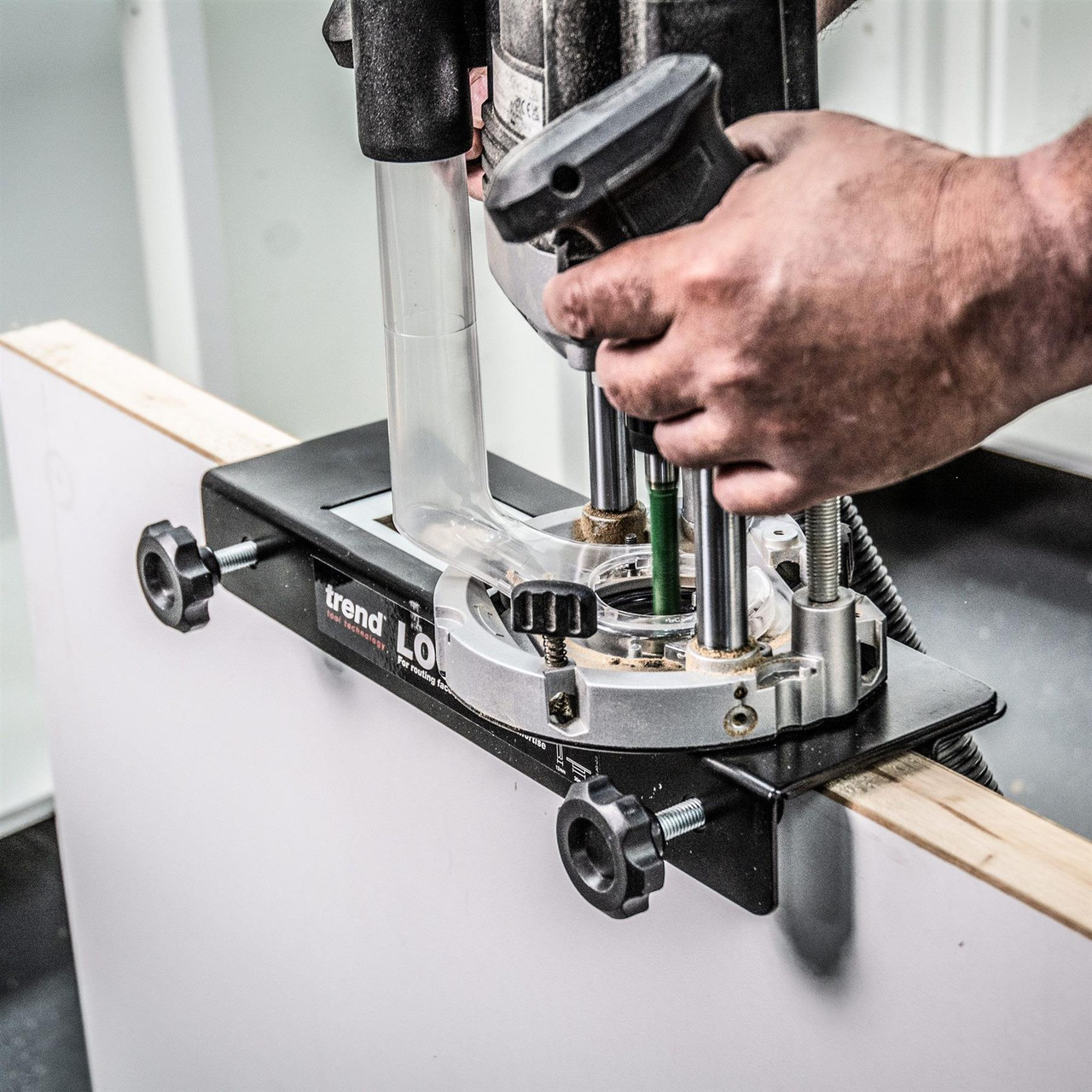

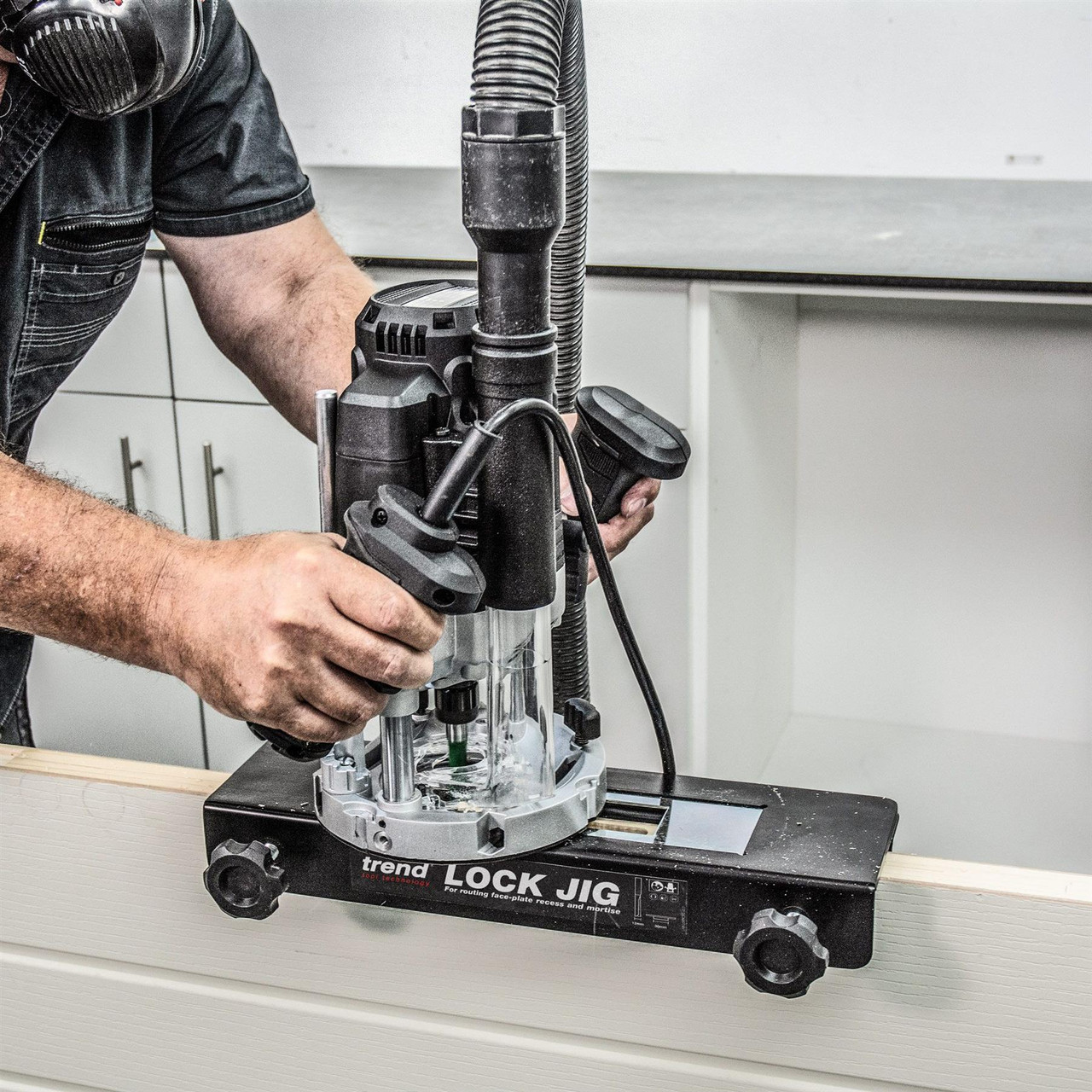

  • Requires: ½”/12mm Plunge Router (80mm plunge depth), ½”/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.

Lock/Jig Specifications

Door thickness min.: 34 mm

Door thickness max.: 58 mm

Template outer size: 234.3 x 59.8 x 1.5 mm

Lock Faceplate Sizes

Metric D x OL Imperial D x OL approx. Template
22.2 x 128.5mm7/8" x 5"20
22.2 x 155mm7/8" x 6 1/8"1
22.5 x 155mm7/8" x 6"2
25.4 x 121mm1" x 4 3/4"3
25.4 x 134mm1" x 5 1/4"5
25.4 x 153mm1" x 6"7
25.4 x 165.5mm1" x 6 1/2"9
25.4 x 177mm1" x 7"10
26 x 139mm1" x 5 1/2"21
26 x 162mm1" x 6 3/8"12
26 x 110mm1" x 4 1/4"WP-LOCK/T/16
25 x 125mm1" x 5"WP-LOCK/T/24 (*Available separately)
25.4 x 60mm1" x 2 3/8"22 (A)
26 x 57.5mm1" x 2 1/4"22 (B)
25 x 57mm1" x 2 1/4"23 (A)
24 x 57mm1" x 2 1/4"23 (B)

Lock Mortise Sizes

Metric D x OL Imperial D x OL approx. Template
16 x 72mm5/8" x 2 7/8"A
16 x 90mm5/8" x 3 1/2"E
16 x 102mm5/8" x 4"F
16 x 107mm5/8" x 4 1/4"B
19 x 78mm3/4" x 3 1/8"C
19 x 109mm3/4" x 4 1/4"D
19 x 115mm3/4" x 4 1/2"H
17 x 60mm5/8" x 2 3/8"WP-LOCK/T/K (*Available separately)
19 x 22mm3/4" x 7/8"J (A)
19 x 24mm7/8" x 1"J (B)
