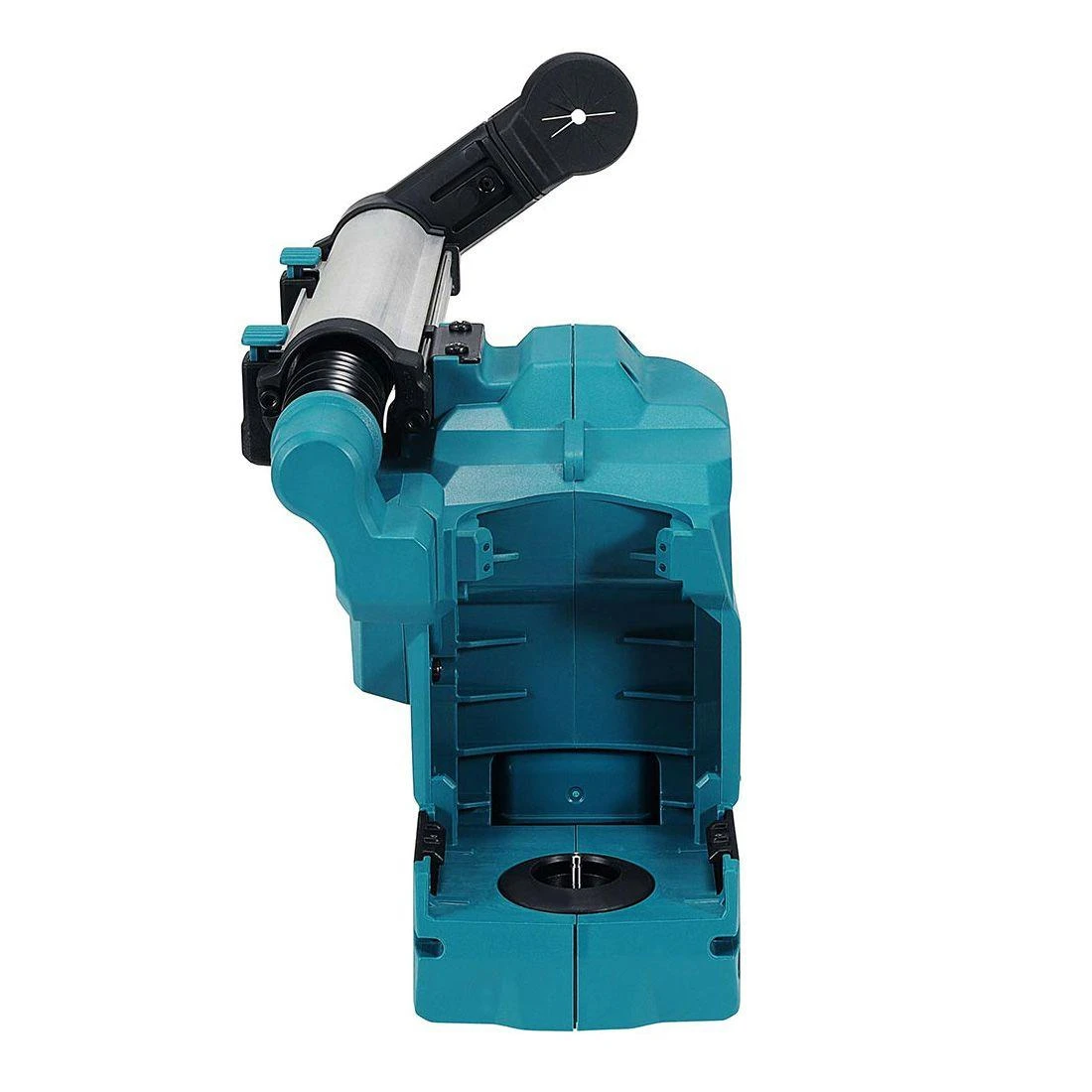

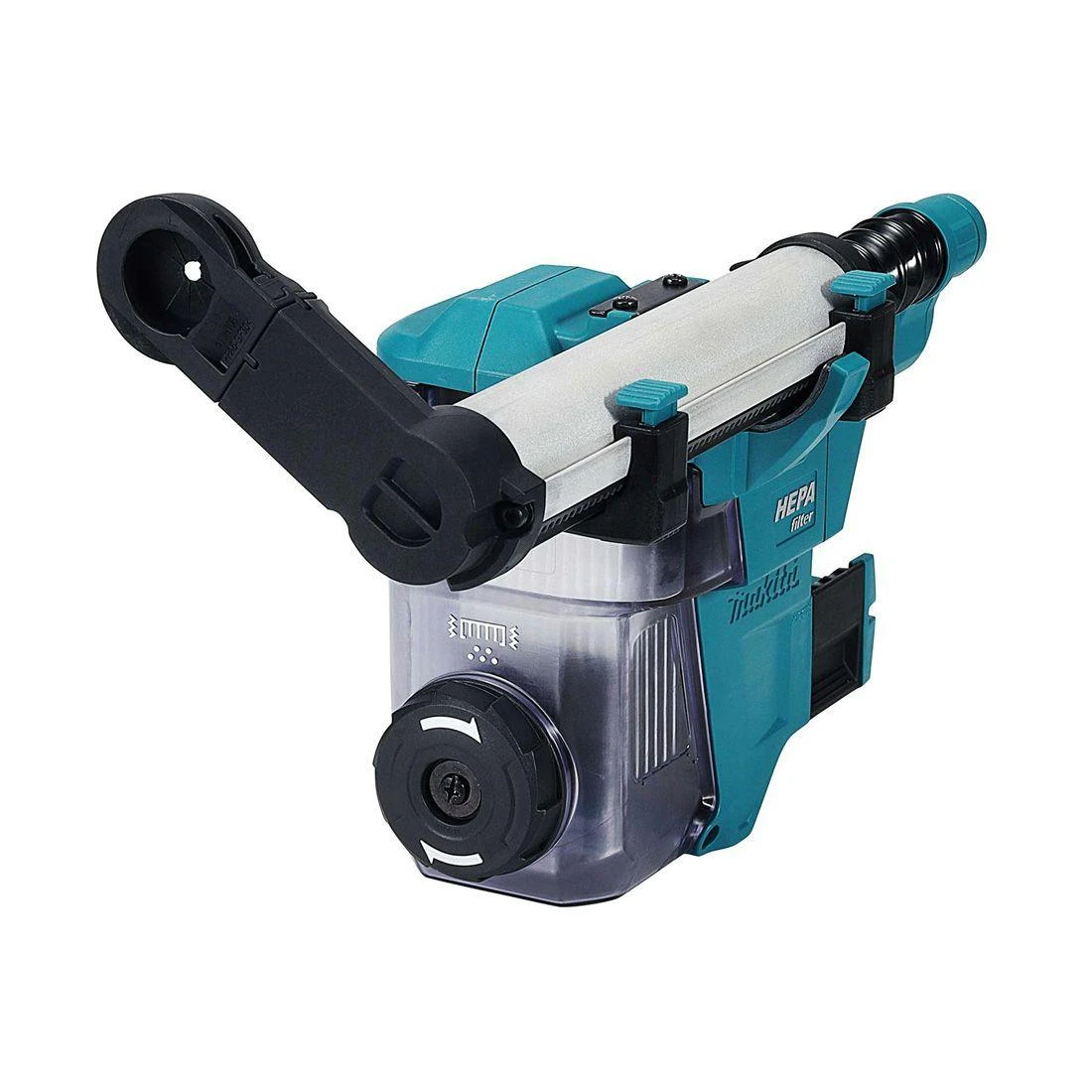

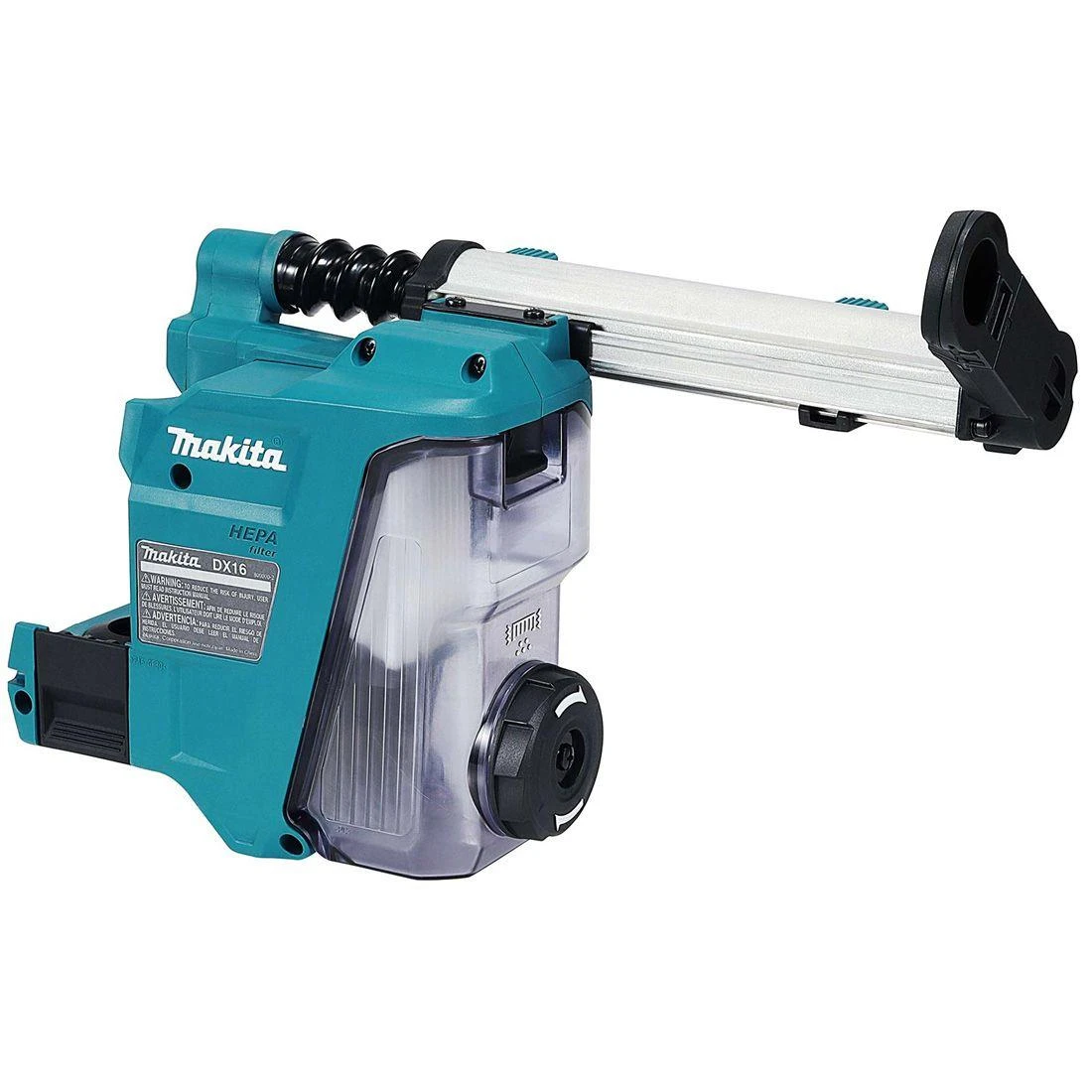

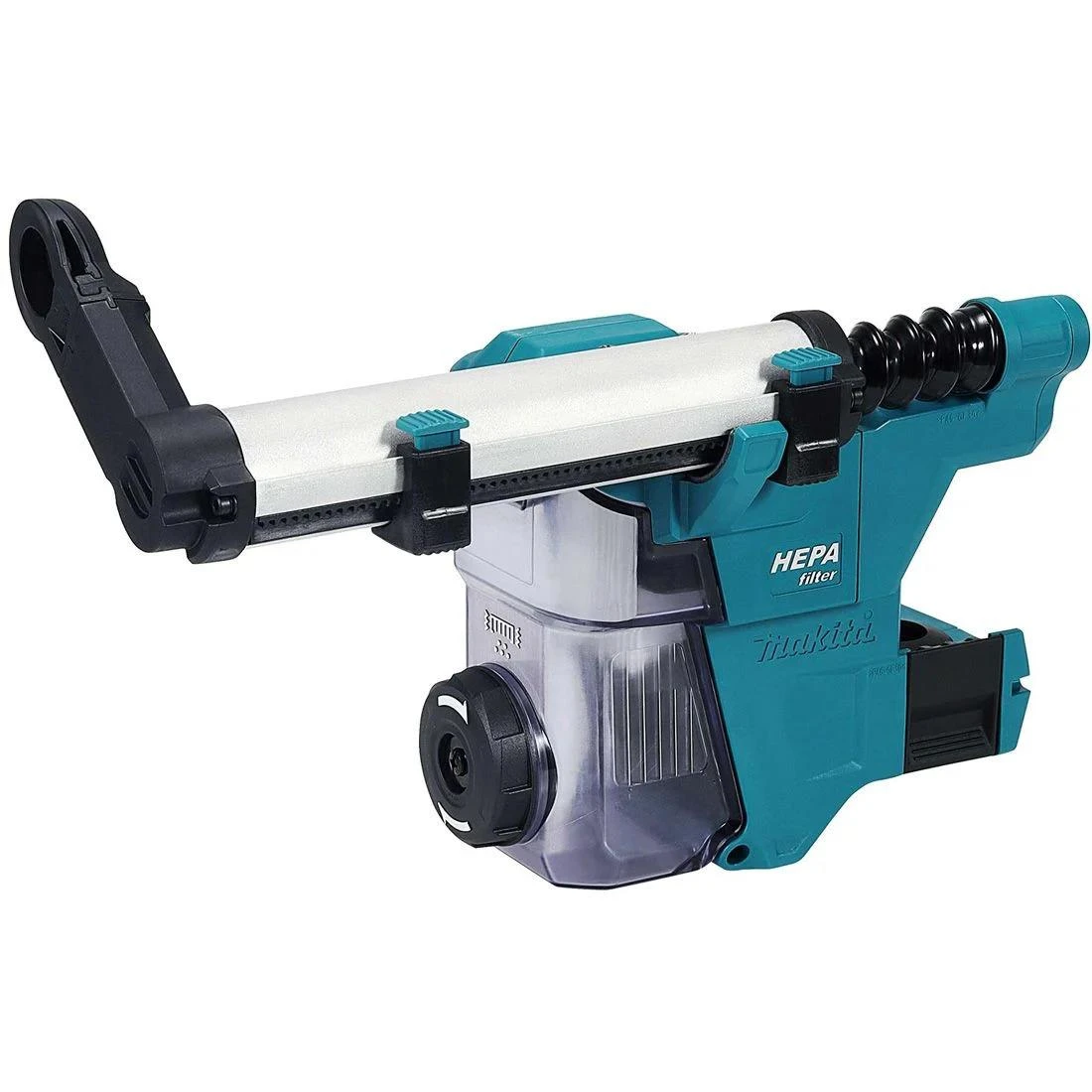

Makita 1911P2-6 DX16 Dust Extractor Attachment with HEPA Filter for DHR183 & HR010G

The Makita DX16 1911P2-6 Dust Extractor Attachment with HEPA Filter provides convenient on-tool dust collection when drilling into concrete and masonry with compatible Makita SDS Plus rotary hammers.

Designed for use with the Makita DHR183 18V LXT and Makita HR010G 40V XGT rotary hammers, the DX16 connects directly to the machine and collects drilling dust close to the point where it is produced.

Its integrated HEPA filtration system is engineered to capture 99.97% of dust particles measuring 0.3 microns and larger, helping reduce the amount of fine airborne dust around the drilling area.

The extractor is powered by the motor of the connected rotary hammer, meaning there is no separate battery to charge or additional power supply required.

A transparent 0.4 litre dust container makes it easy to monitor the amount of collected material, while the built-in filter cleaning mechanism allows dust to be released from the filter simply by turning the cleaning dial.

Why Choose the Makita DX16?

The DX16 is designed specifically for users of compatible Makita rotary hammers who regularly drill into concrete, brick and masonry and want an integrated alternative to connecting the machine to a separate dust extractor.

Because the dust collection unit is attached directly to the rotary hammer, the extraction nozzle stays positioned around the drill bit and collects dust while drilling.

This makes the DX16 particularly useful for fixing and installation work where portability, convenience and keeping the immediate work area cleaner are important.

Key Features

• Genuine Makita DX16 dust extractor attachment

• Makita part number 1911P2-6

• Compatible with Makita DHR183 18V LXT rotary hammer

• Compatible with Makita HR010G 40V XGT rotary hammer

• Integrated HEPA filtration

• HEPA filter engineered to capture 99.97% of particles 0.3 microns and larger

• Collects dust directly while drilling

• 0.4L dust container

• Transparent dust case for easy monitoring

• Built-in filter cleaning mechanism

• Filter can be cleaned by turning the cleaning dial

• Push-button drilling depth adjustment

• Powered directly from the compatible rotary hammer

• No separate battery required

• Up to 105mm operating stroke

• Suitable for drill bits up to 165mm usable length

• Lightweight design at approximately 0.77kg

• Ideal for concrete and masonry drilling applications

Compatible Machines

The Makita 1911P2-6 DX16 is designed for use with:

• Makita DHR183 / DHR183Z 18V LXT SDS Plus Rotary Hammer

• Makita HR010G 40V XGT SDS Plus Rotary Hammer

Always check your machine model before ordering to ensure compatibility.

How Does the Makita DX16 Work?

The DX16 attaches directly to a compatible Makita rotary hammer and positions the extraction nozzle around the drill bit.

As the hole is drilled, dust is drawn into the DX16's collection chamber and passed through its HEPA filtration system.

The extractor is driven by the motor of the connected rotary hammer, so it does not require its own battery.

Once the dust container requires emptying, the transparent case makes this easy to see. The integrated filter cleaning system can also be operated using the rotary cleaning dial to help remove accumulated dust from the filter.

Adjustable Drilling Depth

The DX16 includes an integrated depth adjustment mechanism.

The drilling depth can be set using a single push-button adjustment, making it easier to produce consistent hole depths when installing:

• Wall plugs

• Concrete screws

• Mechanical fixings

• Anchors

• Masonry fixings

• General construction fixings

Technical Specification

Ideal For

The Makita DX16 is ideal for:

• Concrete drilling

• Masonry drilling

• Installing wall plugs

• Anchor installation

• Mechanical fixing

• Electrical installation

• Plumbing installation

• HVAC installation

• Interior construction work

• Maintenance work

• Tradespeople regularly drilling fixing holes in concrete

• Users wanting integrated dust extraction without a separate vacuum

What's in the Box?

• 1 × Makita 1911P2-6 DX16 Dust Extractor Attachment with HEPA Filter

Rotary hammer, drill bits, batteries and chargers are not included.

Expert Tip

The DX16 is particularly useful when the Makita DHR183 is being used for repetitive small and medium-sized fixing holes in concrete.

Because the extractor attaches directly to the rotary hammer and is powered by the tool itself, it creates a much more compact setup than using a separate vacuum and extraction hose.

Regularly emptying the dust container and using the built-in filter cleaning mechanism will also help maintain effective dust collection.

Frequently Asked Questions

What is the Makita 1911P2-6?

The Makita 1911P2-6 is the DX16 dust extractor attachment, designed to collect dust while drilling with compatible Makita SDS Plus rotary hammers.

Which tools are compatible with the Makita DX16?

The DX16 is designed for compatible Makita DHR183 18V LXT and Makita HR010G 40V XGT rotary hammers.

Is the Makita DX16 compatible with the DHR183Z?

Yes. The Makita DX16 1911P2-6 is compatible with the DHR183Z 18V LXT SDS Plus rotary hammer.

Is the Makita DX16 compatible with the HR010G?

Yes. The DX16 is also compatible with the Makita HR010G 40V XGT SDS Plus rotary hammer.

Does the Makita DX16 have a HEPA filter?

Yes. The DX16 features an integrated HEPA filter engineered to capture 99.97% of dust particles measuring 0.3 microns and larger.

Does the DX16 need its own battery?

No. The DX16 is powered by the motor of the compatible Makita rotary hammer, so a separate battery or charger is not required for the dust extraction attachment.

What is the dust capacity of the Makita DX16?

The DX16 has a 0.4 litre dust collection container.

Can you see when the DX16 needs emptying?

Yes. The DX16 has a transparent dust container, allowing the user to easily check how much dust has been collected.

Does the Makita DX16 have a filter cleaning system?

Yes. A built-in filter cleaning mechanism allows accumulated dust to be released from the filter by turning the cleaning dial.

Can you adjust the drilling depth with the DX16 fitted?

Yes. The DX16 includes an adjustable depth gauge that can be set using a push-button mechanism.

What drill bit length can be used with the Makita DX16?

The DX16 supports a usable drill bit length of up to 165mm and has an operating stroke of 105mm.

How much does the Makita DX16 weigh?

The DX16 weighs approximately 0.77kg.

Is the DHR183 rotary hammer included with the DX16?

No. The DX16 is supplied as a dust extraction attachment only. The compatible rotary hammer, battery, charger and drill bits are sold separately.
