Makita DHR183Z 18V LXT Brushless SDS Plus Rotary Hammer 18mm Body Only

Short Description

The Makita DHR183Z 18V LXT Brushless SDS Plus Rotary Hammer is a compact and lightweight cordless hammer drill designed for fast drilling into concrete, masonry, steel and wood. Delivering 1.7J impact energy, up to 5,000 blows per minute and an 18mm maximum concrete drilling capacity, it combines strong drilling performance with Makita's AVT Anti-Vibration Technology for improved operator comfort.

Supplied body only with side handle and depth stop. Makita 18V LXT battery and charger are not included.

Product Description

The Makita DHR183Z 18V LXT SDS Plus Rotary Hammer combines compact dimensions with the drilling performance required for everyday construction, installation and maintenance work.

Powered by the Makita 18V LXT battery system, the DHR183Z uses an efficient brushless motor to deliver up to 1,100rpm, 5,000 blows per minute and 1.7J of impact energy. It can drill holes up to 18mm in concrete, 13mm in steel and 24mm in wood, making it an excellent cordless rotary hammer for fixing, anchor and general drilling applications.

The DHR183 has been designed particularly with portability and operator comfort in mind. Makita's AVT (Anti-Vibration Technology) helps reduce vibration transmitted to the user during hammer drilling, while the compact body makes the machine easier to handle when working for longer periods or in restricted spaces.

Two Drilling Modes

The Makita DHR183Z offers two selectable operating modes:

• Rotation + Hammering – for drilling into concrete, brick and masonry
• Rotation Only – for drilling into materials such as wood and metal with the appropriate accessory

The DHR183Z does not have a hammer-only/chiselling mode, making it primarily a compact drilling and fixing machine rather than a demolition hammer.

Why Choose the Makita DHR183Z?

The DHR183Z is particularly well suited to tradespeople who need a compact 18V SDS Plus drill for regular concrete and masonry drilling without carrying a larger combination hammer.

Its 1.7J impact energy provides strong drilling performance while its optimum concrete drilling range of approximately 3.2–10mm makes it particularly suitable for the smaller and medium-sized holes commonly required for plugs, anchors and fixings.

The brushless motor provides efficient power delivery with no carbon brushes to replace, while variable speed control allows the drilling speed to be controlled directly from the trigger.

For users already invested in the Makita 18V LXT platform, the DHR183Z can be powered using compatible Makita LXT Li-ion batteries, allowing batteries to be shared with other tools in the range.

Key Features

• 18V Makita LXT cordless platform
• Brushless motor for efficient performance and long service life
• SDS Plus tool holder for fast and secure bit changes
• 1.7J impact energy
• Maximum 18mm drilling capacity in concrete
• Up to 5,000 blows per minute
• Up to 1,100rpm no-load speed

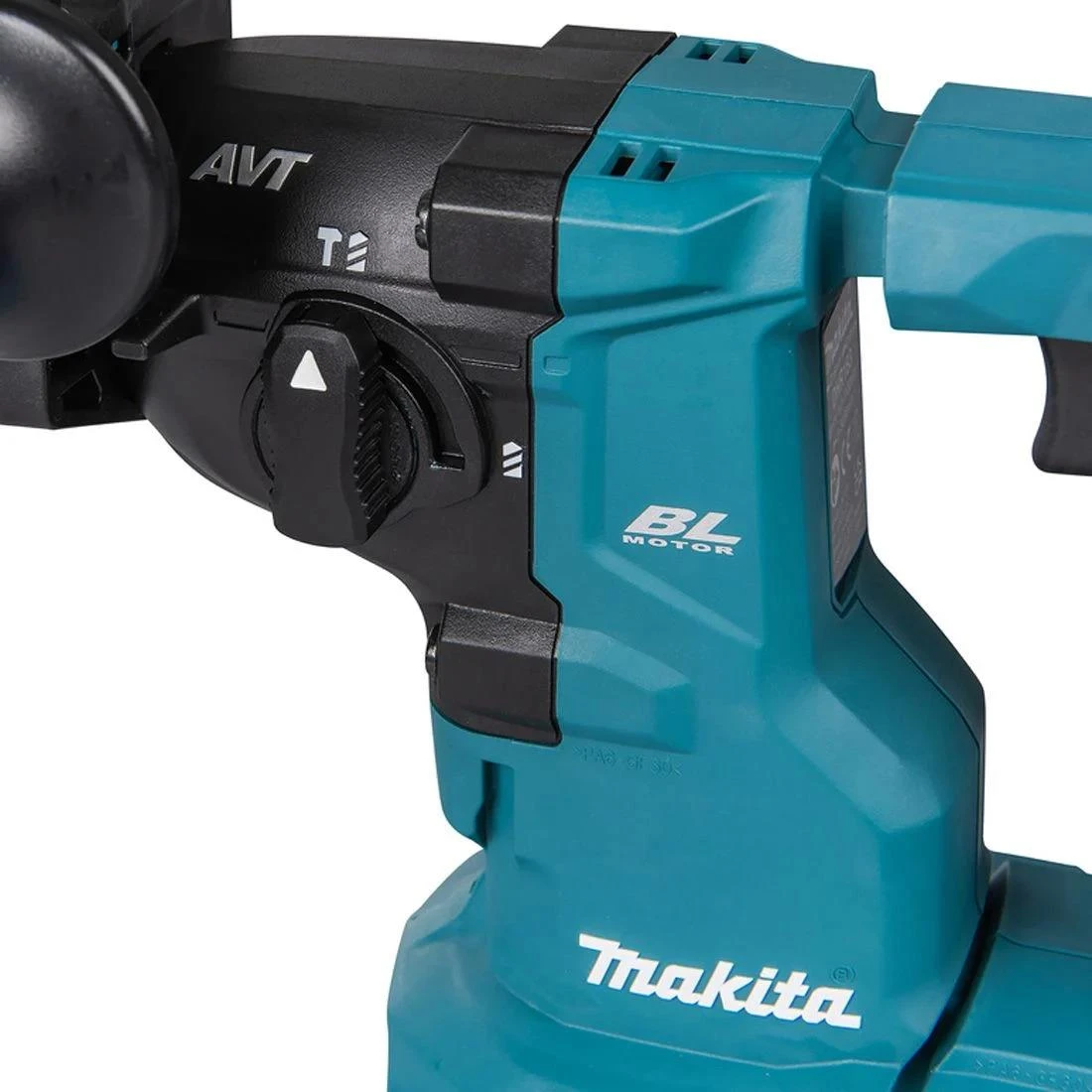

• AVT Anti-Vibration Technology helps reduce vibration during use
• Two operating modes: Rotation Only / Rotation + Hammering
• Variable speed control through the trigger
• Constant speed control
• Electric brake
• Forward and reverse rotation
• Built-in LED job light with pre-glow and after-glow
• Tool-less SDS Plus bit changes
• Compact and lightweight design
• Three-position vibration-absorbing side handle
• Battery protection system
• Tether strap compatible
• Compatible with the optional Makita DX16 dust extraction attachment
• DX16 supports HEPA filtration and filter cleaning
• Ideal for drilling fixing and anchor holes in concrete and masonry

Ideal For

The Makita DHR183Z is ideal for:

• Drilling holes in concrete and masonry
• Fixing into concrete and brick
• Installing wall plugs and anchors
• Mechanical and electrical installation work
• Plumbing and HVAC installation
• General construction and maintenance

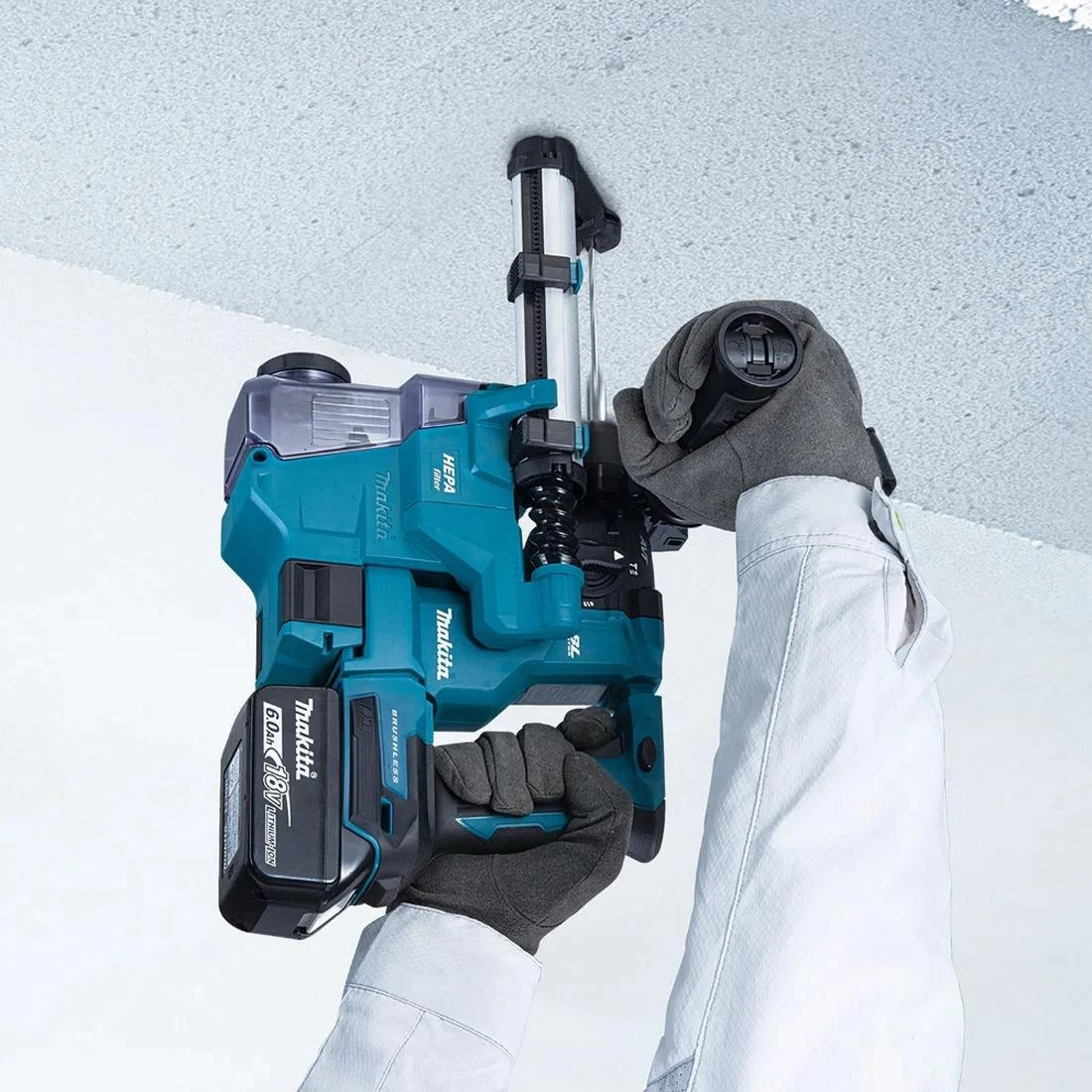

• Overhead and repetitive drilling
• Drilling wood and metal in rotation-only mode
• Tradespeople already using Makita 18V LXT batteries

Technical Specification

Noise & Vibration

Dust Extraction Compatibility

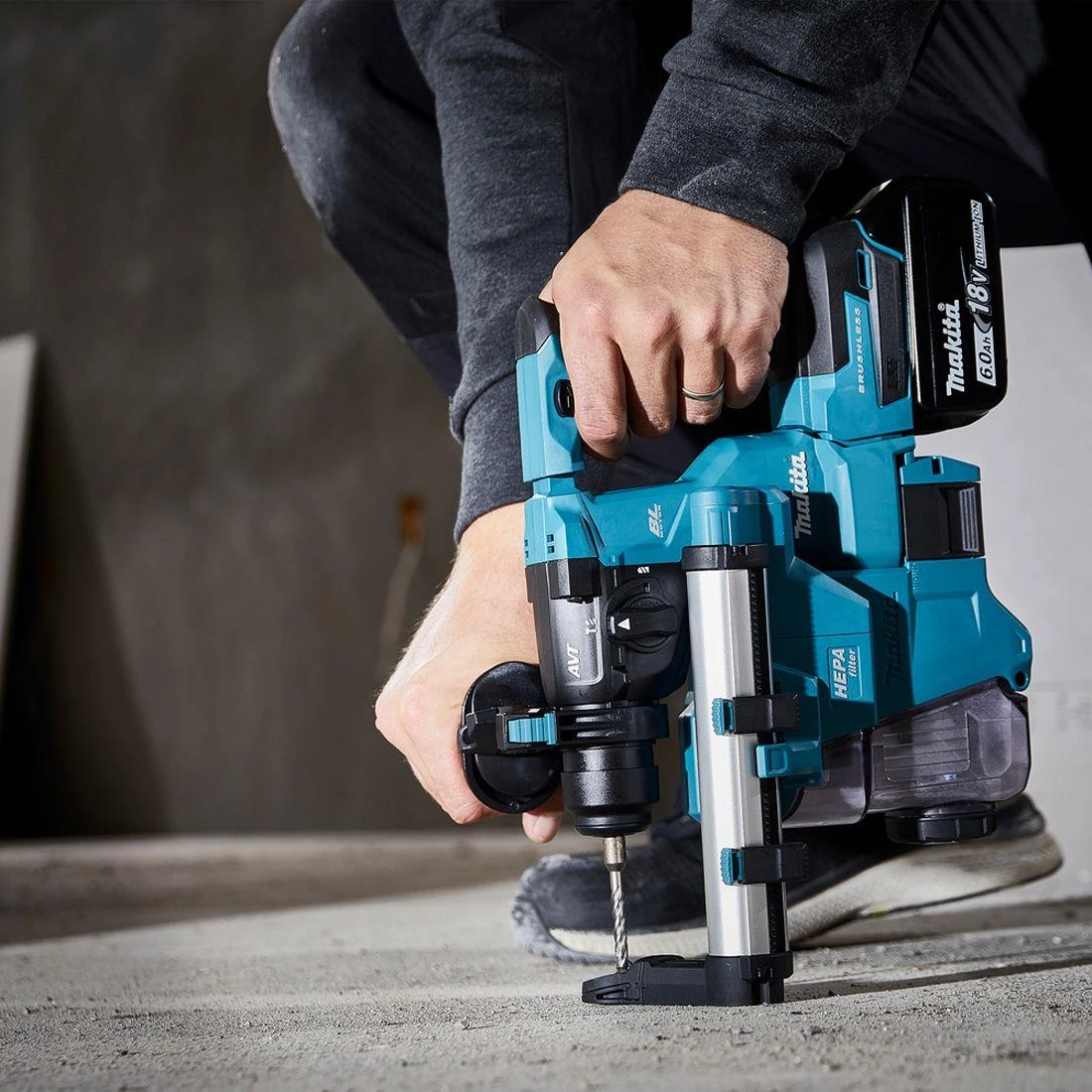

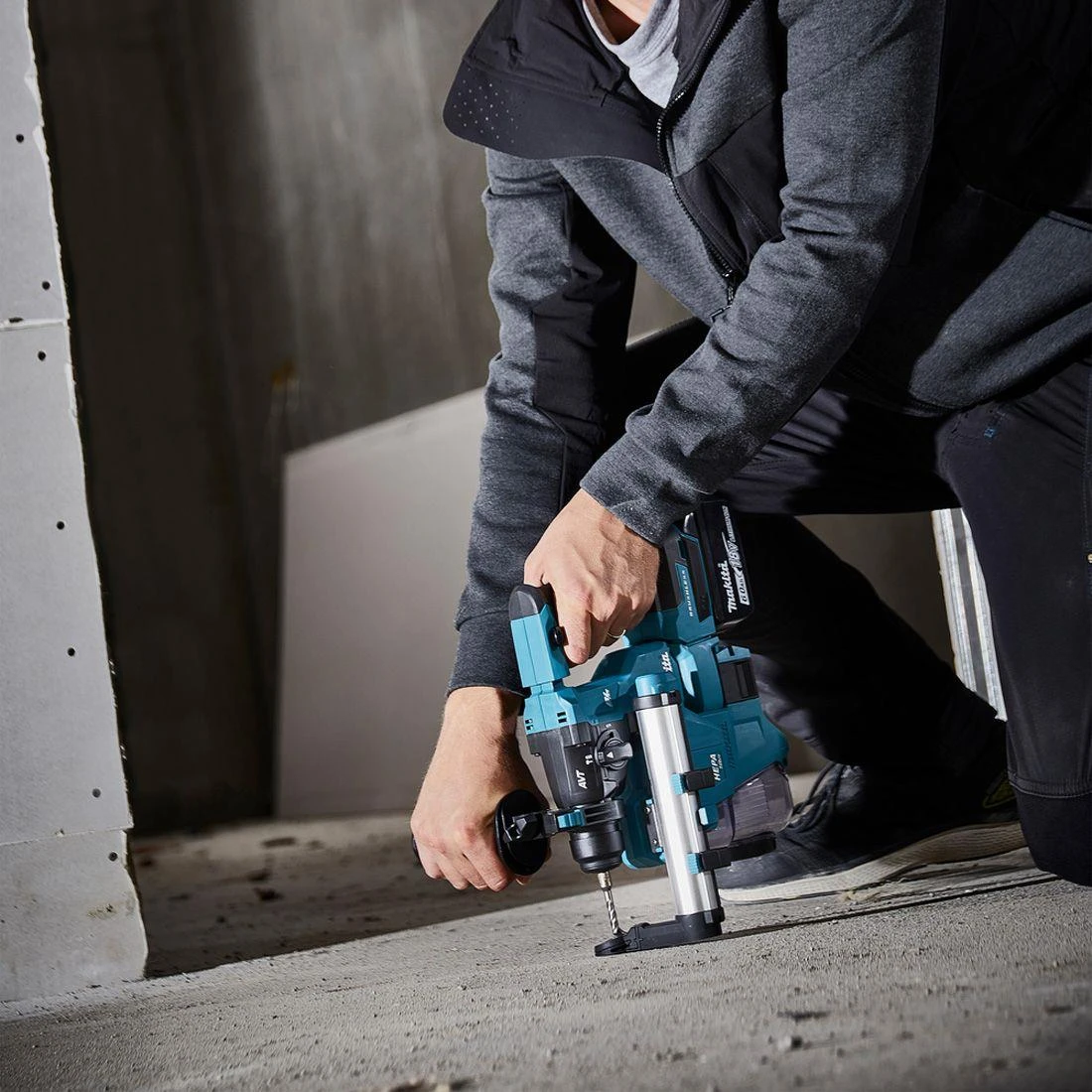

The Makita DHR183Z is compatible with the optional Makita DX16 dust extraction attachment, providing a convenient integrated solution for collecting dust while drilling.

The DX16 incorporates a HEPA filtration system and filter-cleaning mechanism and is available separately.

Please note: the DX16 dust extractor is not supplied with this DHR183Z body-only model.

What's in the Box?

• 1 × Makita DHR183Z 18V LXT Brushless SDS Plus Rotary Hammer
• 1 × Side Handle

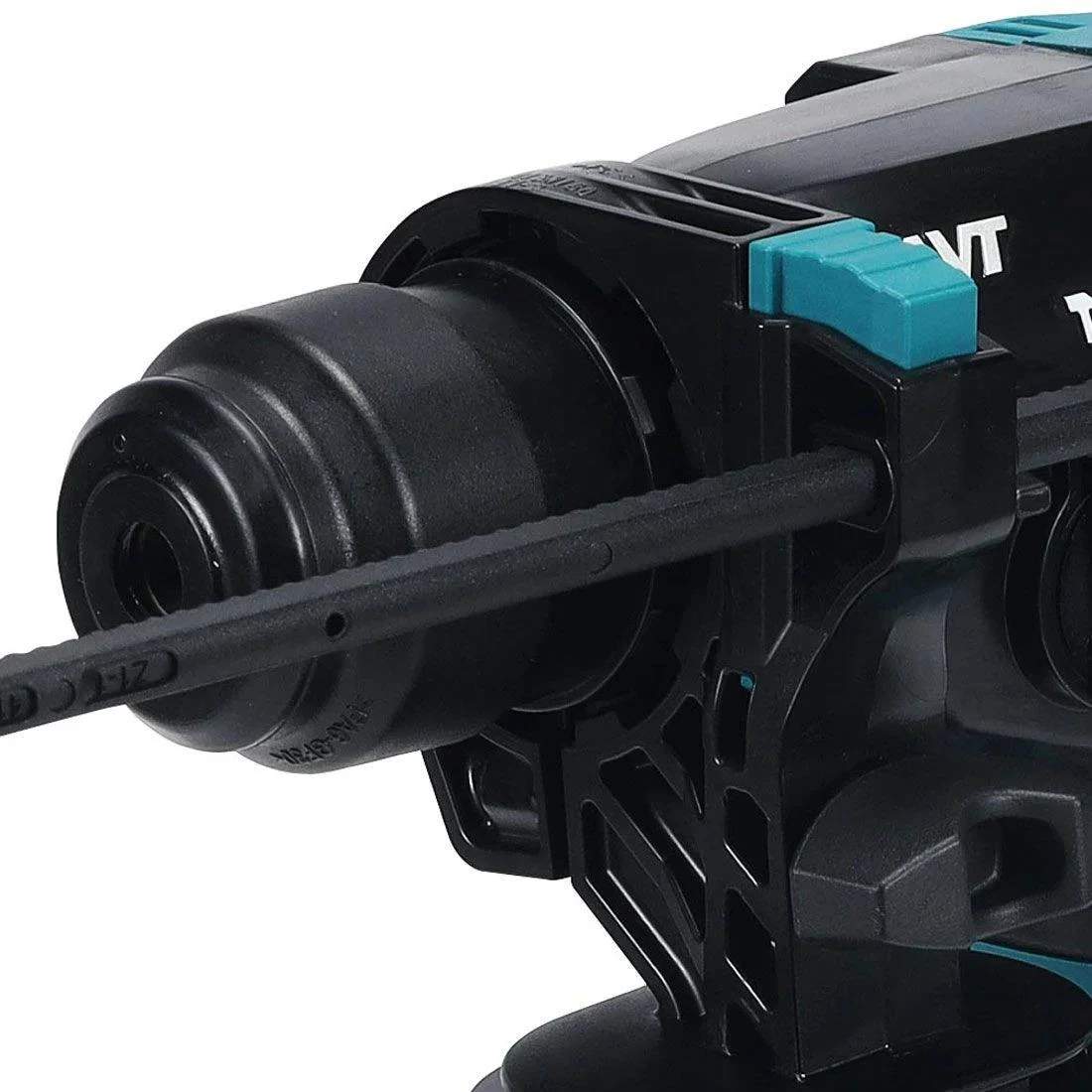

• 1 × Depth Stop

Battery and charger are not included.

Expert Tip

The DHR183Z is a particularly good choice if most of your SDS drilling involves smaller fixing and anchor holes in concrete. Its optimum concrete drilling range is 3.2–10mm, while it can drill up to 18mm when required.

If your work involves regular chiselling, tile removal or light demolition, choose a Makita rotary hammer with a dedicated hammer-only/chiselling mode, as the DHR183Z is a two-mode drilling machine.

Frequently Asked Questions

Is the Makita DHR183Z brushless?

Yes. The Makita DHR183Z has a brushless motor, providing efficient power delivery and eliminating the need to replace carbon brushes.

What is the maximum drilling capacity of the Makita DHR183Z?

The DHR183Z can drill up to 18mm in concrete, 13mm in steel and 24mm in wood when used with the appropriate drill bit.

What is the impact energy of the Makita DHR183Z?

The Makita DHR183Z produces 1.7J of impact energy.

What is the best drilling range for the DHR183Z in concrete?

The optimum concrete drilling diameter range for the Makita DHR183 is approximately 3.2–10mm, although its maximum concrete capacity is 18mm.

Does the Makita DHR183Z include a battery?

No. This DHR183Z is supplied as a body-only machine. A compatible Makita 18V LXT battery is required and must be purchased separately if you do not already own one.

Does the Makita DHR183Z include a charger?

No. Battery and charger are sold separately.

Which batteries does the Makita DHR183Z use?

The DHR183Z is part of the Makita 18V LXT cordless platform and operates from compatible Makita 18V LXT Li-ion batteries.

Is the Makita DHR183Z SDS Plus?

Yes. The DHR183Z uses an SDS Plus tool holder and is compatible with SDS Plus drill bits and suitable SDS Plus accessories.

Does the Makita DHR183Z have a chiselling mode?

No. The DHR183Z has two operating modes: rotation only and rotation with hammering. It does not have a separate hammer-only mode for chiselling.

Can the Makita DHR183Z drill concrete?

Yes. It is specifically designed for drilling concrete and masonry and has a maximum concrete drilling capacity of 18mm.

Does the Makita DHR183Z have anti-vibration technology?

Yes. It features Makita AVT (Anti-Vibration Technology) to help reduce the vibration transmitted to the operator while hammer drilling.

Can dust extraction be fitted to the Makita DHR183Z?

Yes. The DHR183Z is compatible with the optional Makita DX16 dust extraction attachment, which incorporates HEPA filtration. The DX16 is sold separately.

How heavy is the Makita DHR183Z?

The tool itself has a net weight of approximately 1.6kg. Depending on the battery fitted, the operating weight is approximately 2.1–2.9kg.

Is the Makita DHR183Z suitable for professional use?

Yes. Its brushless motor, SDS Plus fitting, AVT system, 1.7J impact energy and compact design make it particularly well suited to professional fixing, installation, construction and maintenance work.
